PCI BUS Communication Failure

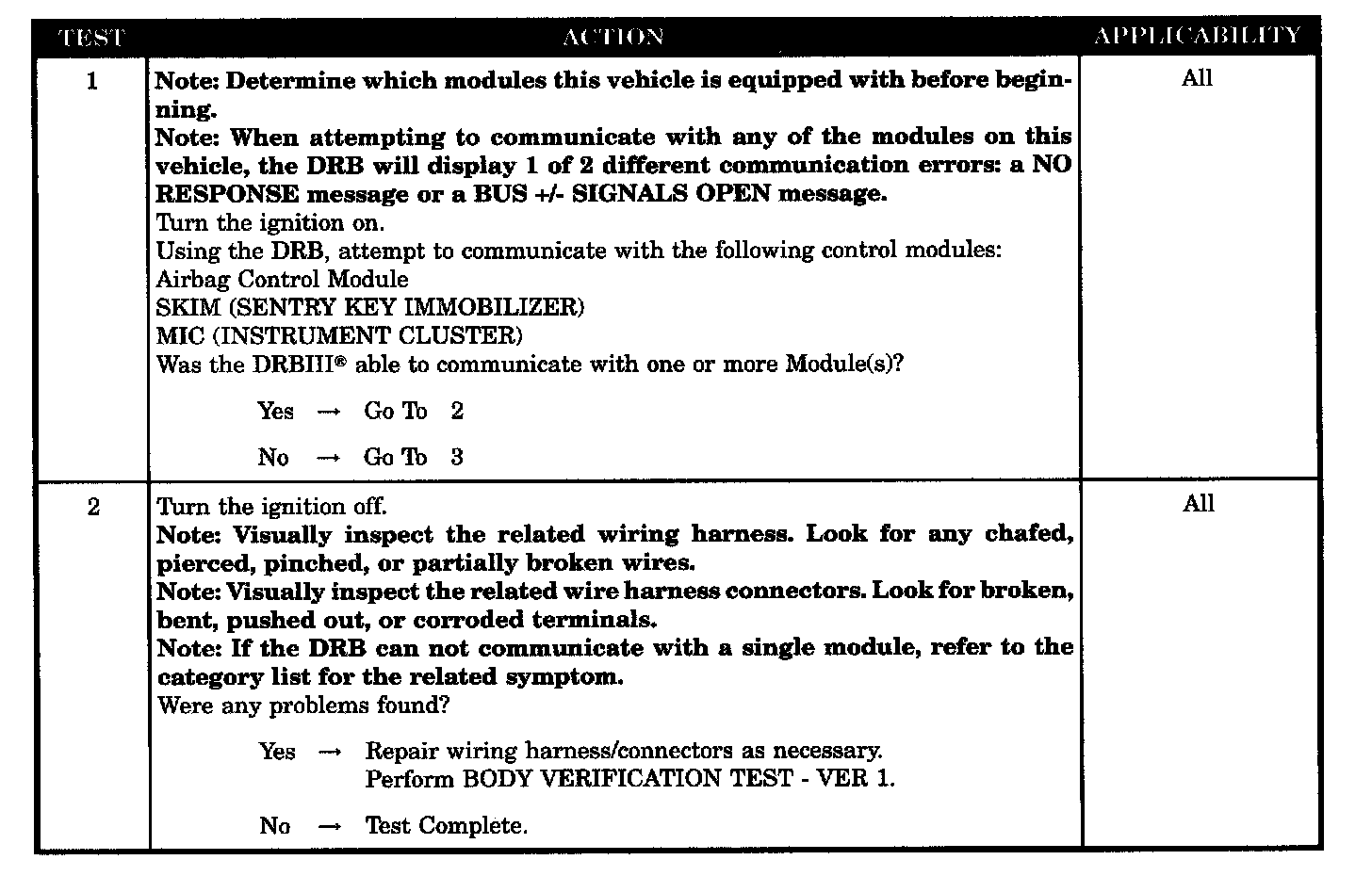

Test 1 - 2:

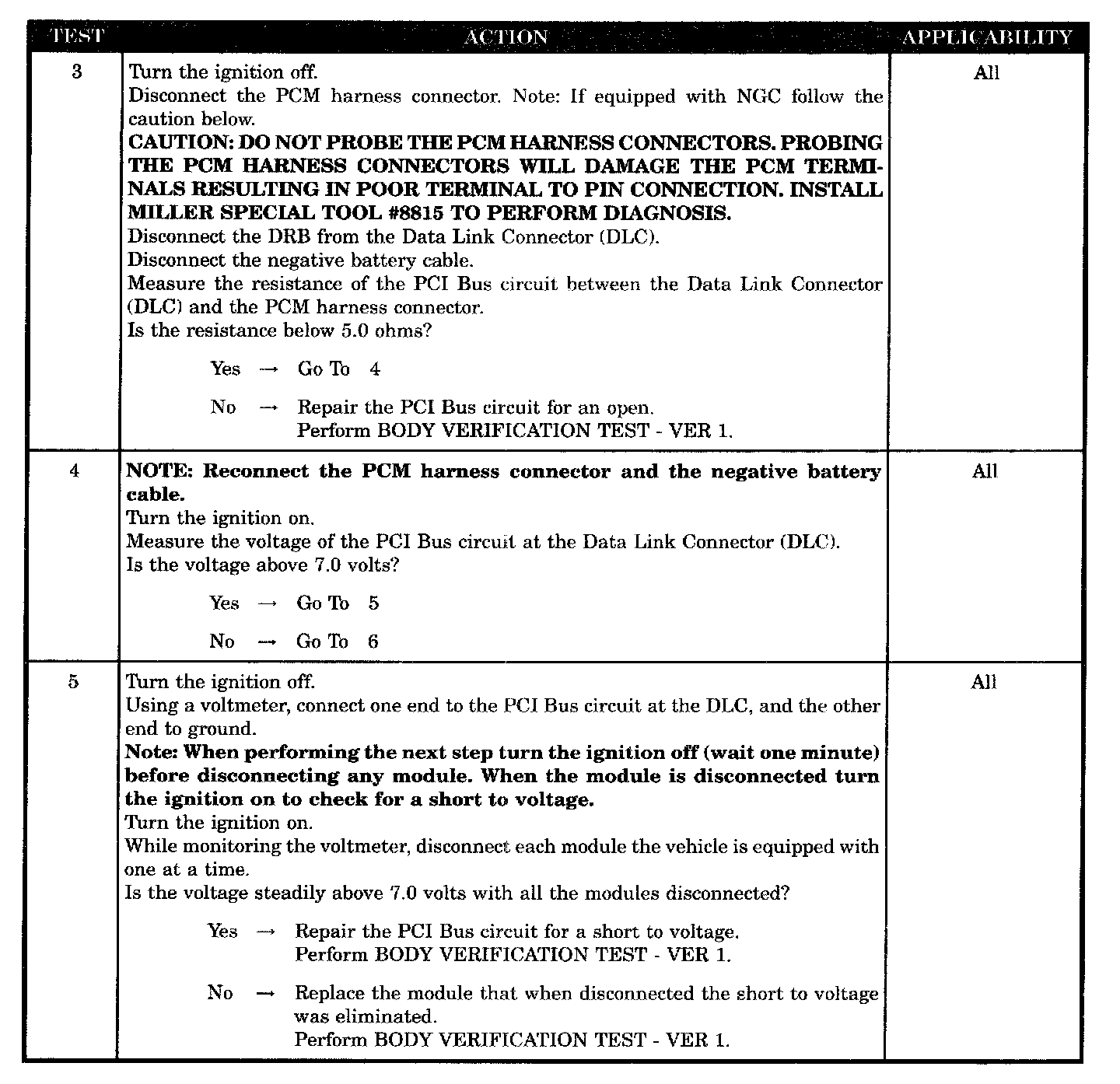

Test 3 - 5:

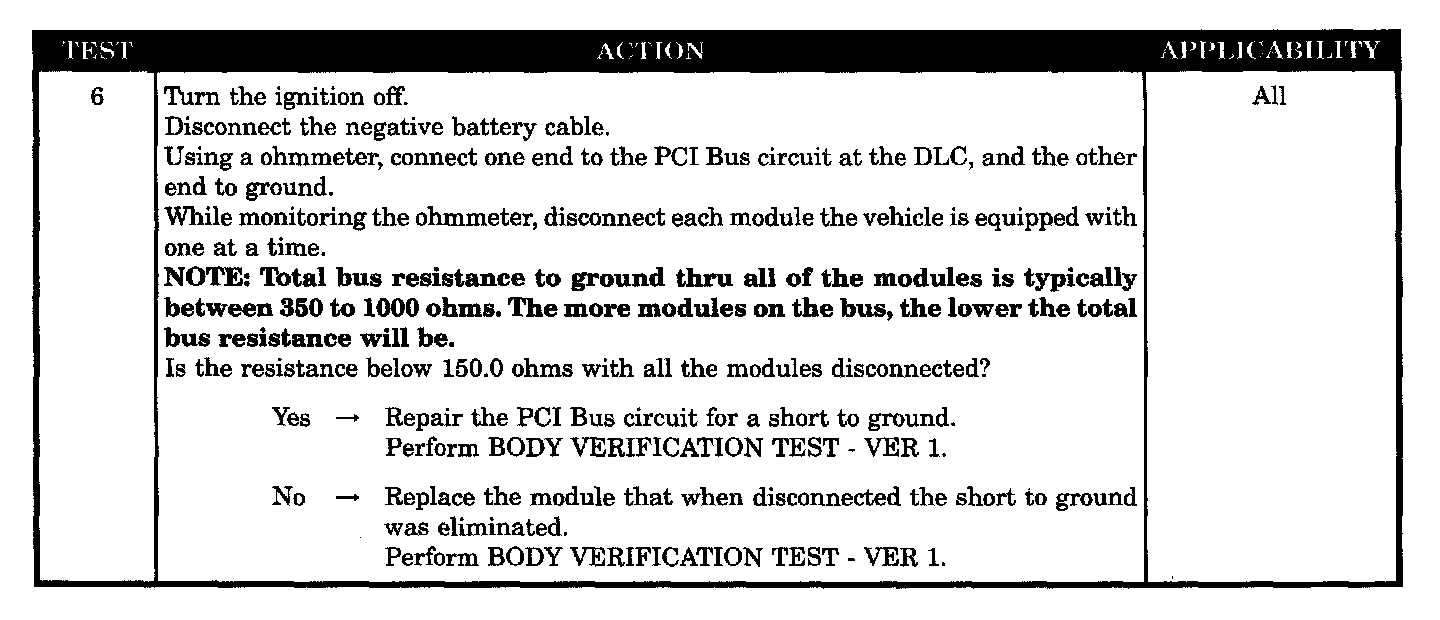

Test 6:

SYMPTOM
PCI BUS COMMUNICATION FAILURE

POSSIBLE CAUSES
- Wiring harness intermittent
- Open PCI BUS circuit at the data link connector (DLC)
- PCI BUS circuit shorted to voltage
- Module short to voltage
- PCI BUS circuit shorted to ground
- Module short to ground
