Timing Belt
Timing Belt Interval

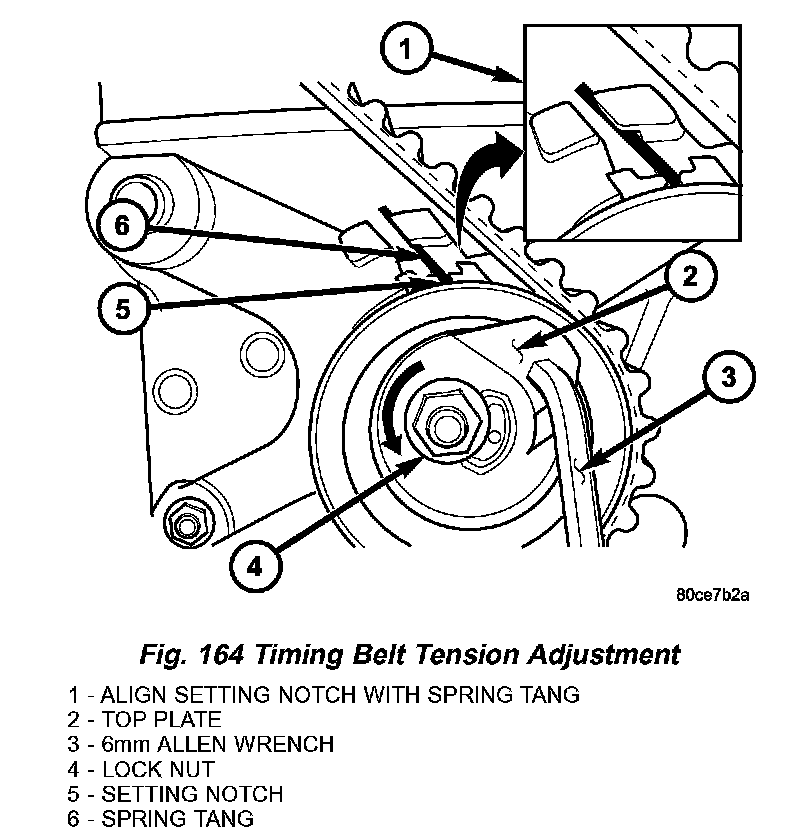

Using the alien wrench to prevent the top plate from moving, torque the tensioner lock nut to 30 Nm (22 ft. lbs.). Setting notch and spring tang should remain aligned after lock nut is torqued.
Timing Belt Interval
Using the alien wrench to prevent the top plate from moving, torque the tensioner lock nut to 30 Nm (22 ft. lbs.). Setting notch and spring tang should remain aligned after lock nut is torqued.
