Sunroof Control Module Connector End View

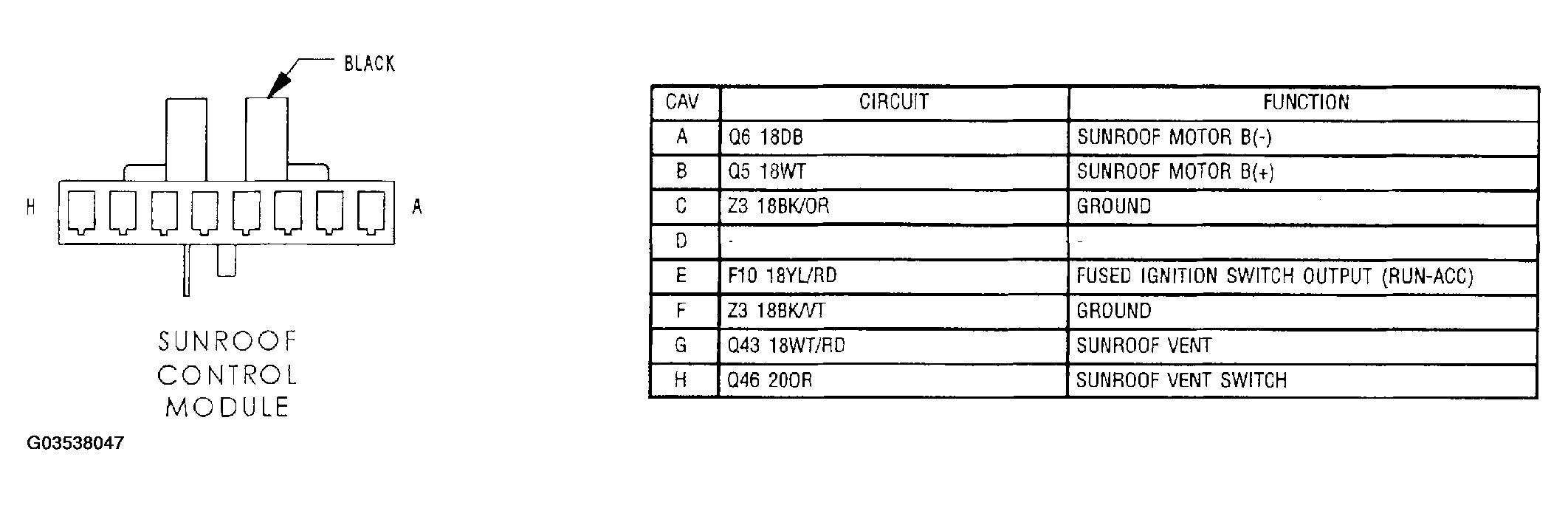

Fig 1: Sunroof Control Module Connector End View
G03538047Courtesy of DAIMLERCHRYSLER CORP.
