Fuel Cap Lock Cylinder: Installation

  1. Install the keyed lock cylinder in cap.

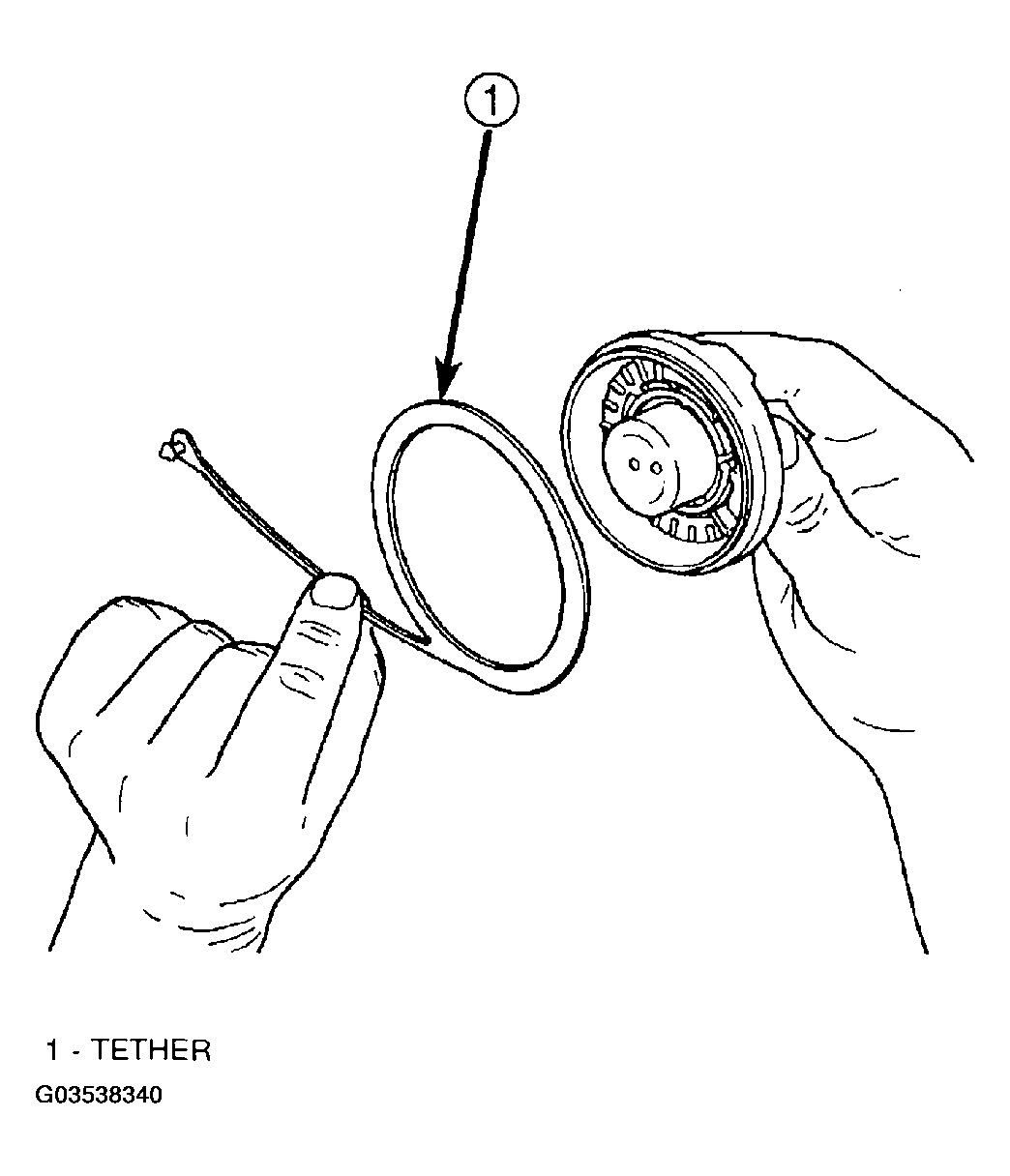

  2. Position lock cylinder engagement collar and tether (Figure).

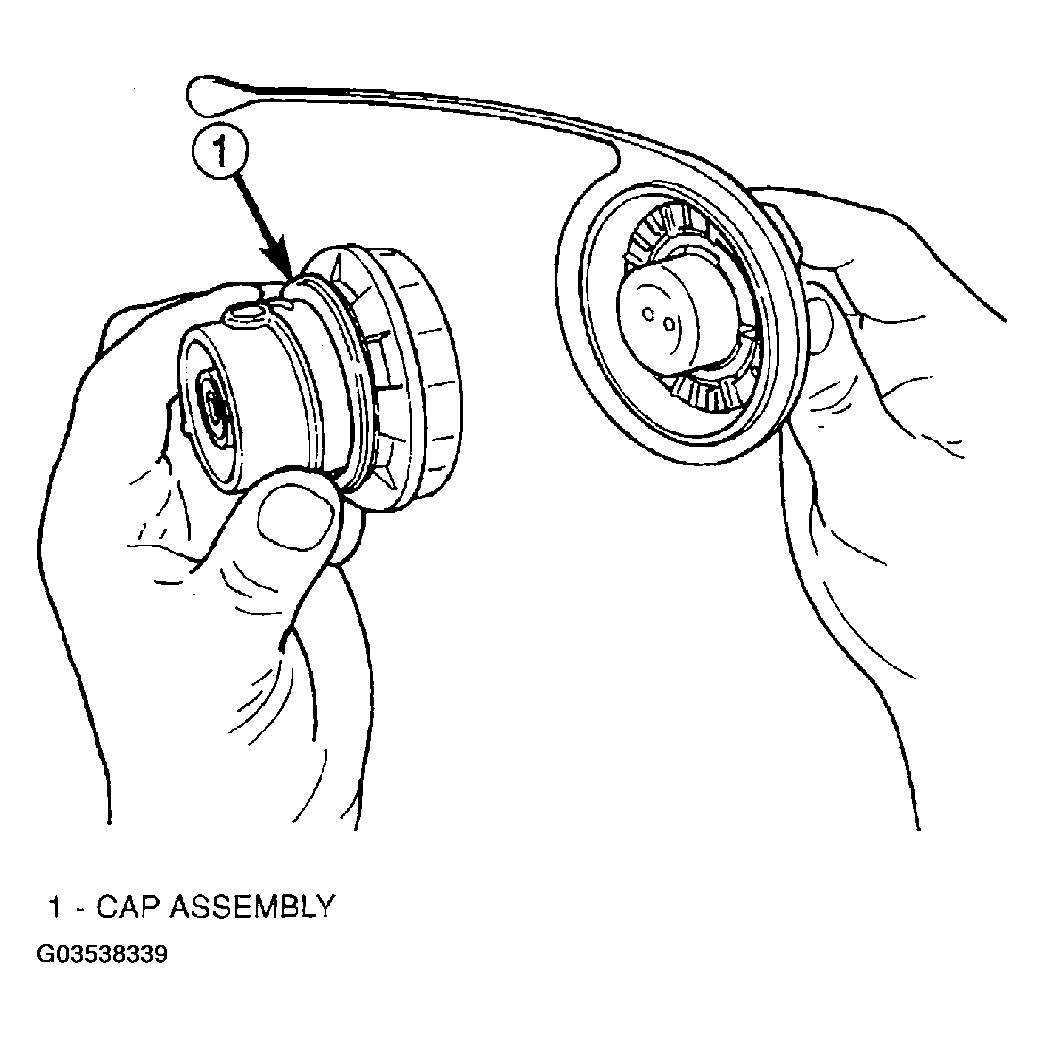

  3. Position threaded portion of cap (Figure).
  4. Snap retaining ring in position.
