Charts And Graphs: Notes

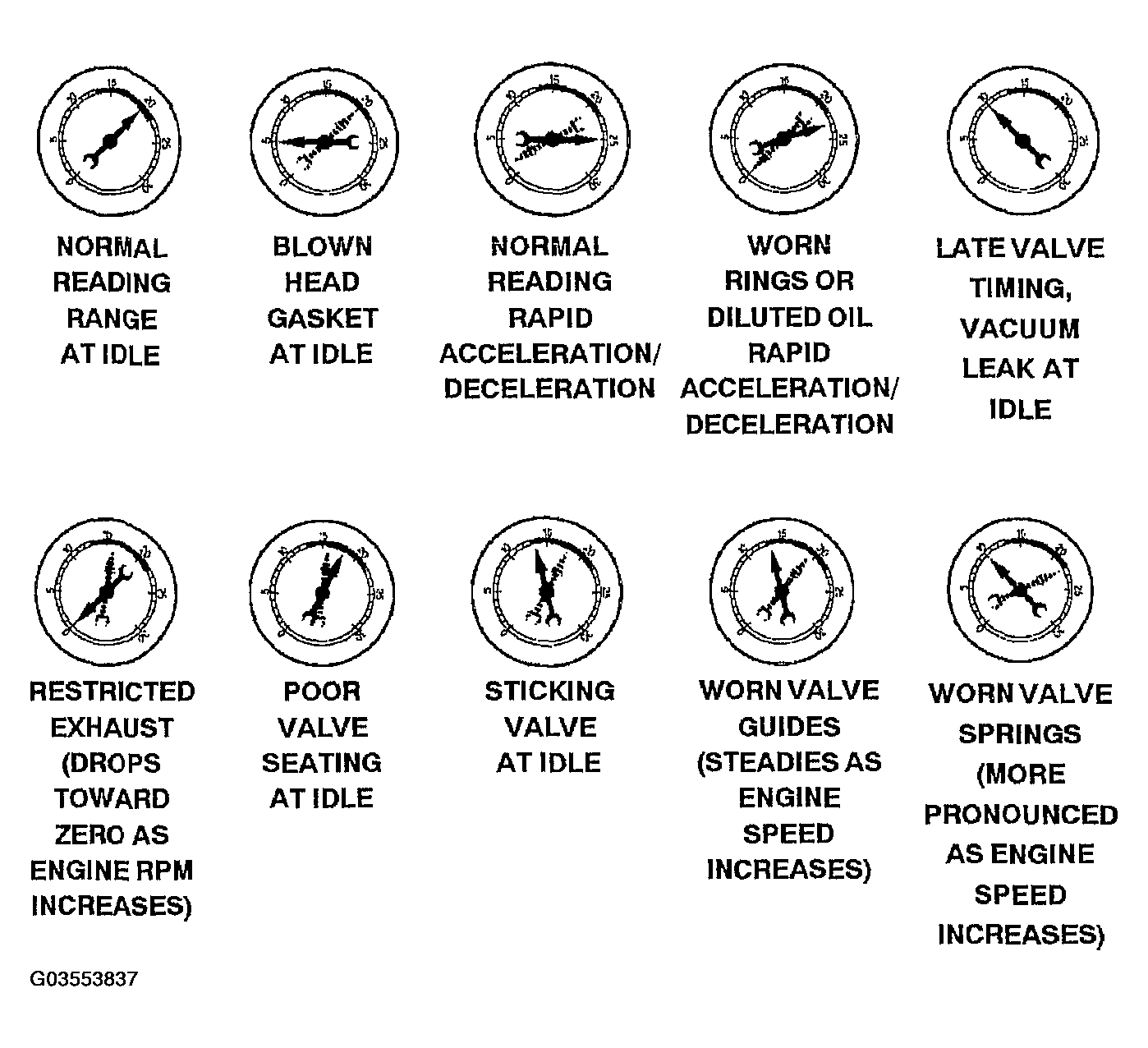

Fig 1: Identifying Reading Gauge
G03553837Courtesy of DAIMLERCHRYSLER CORP.
