Component Locations: Switches/Gauges: Notes

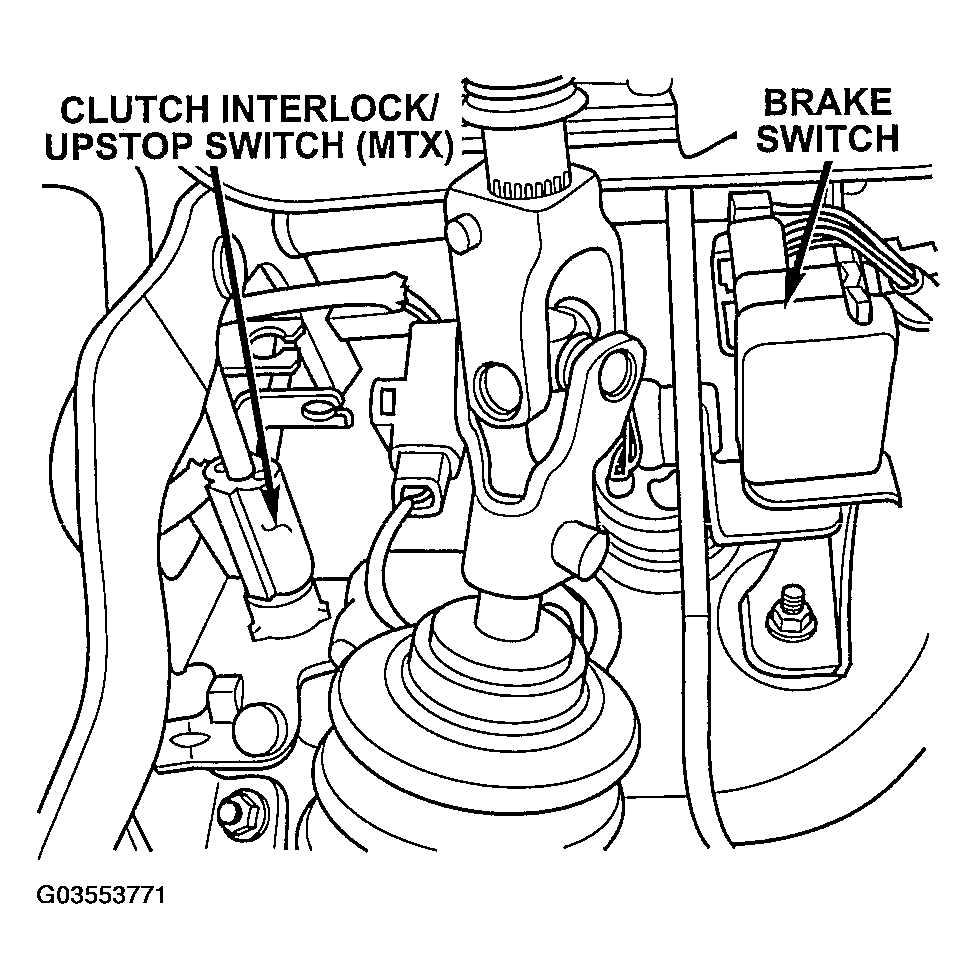

Fig 1: Identifying Clutch Interlock/Upstop Switch (MTX)
G03553771Courtesy of DAIMLERCHRYSLER CORP.

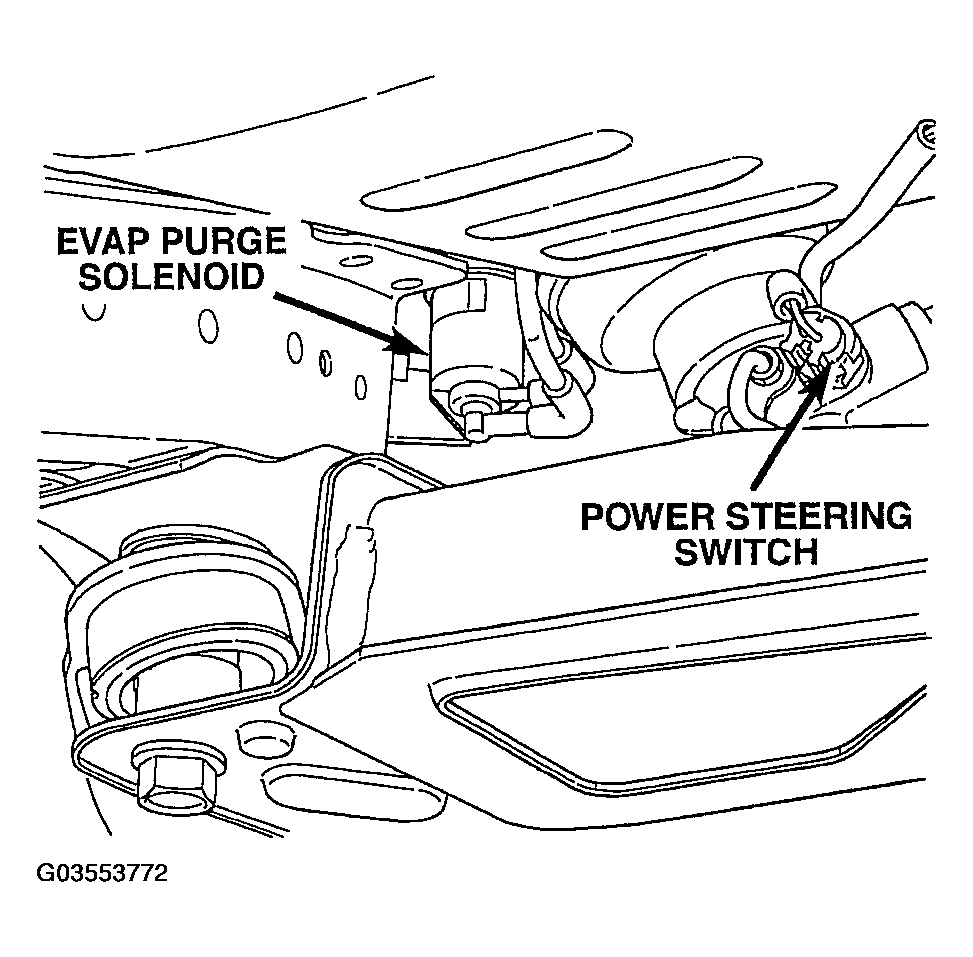

Fig 2: Identifying Power Steering Switch
G03553772Courtesy of DAIMLERCHRYSLER CORP.

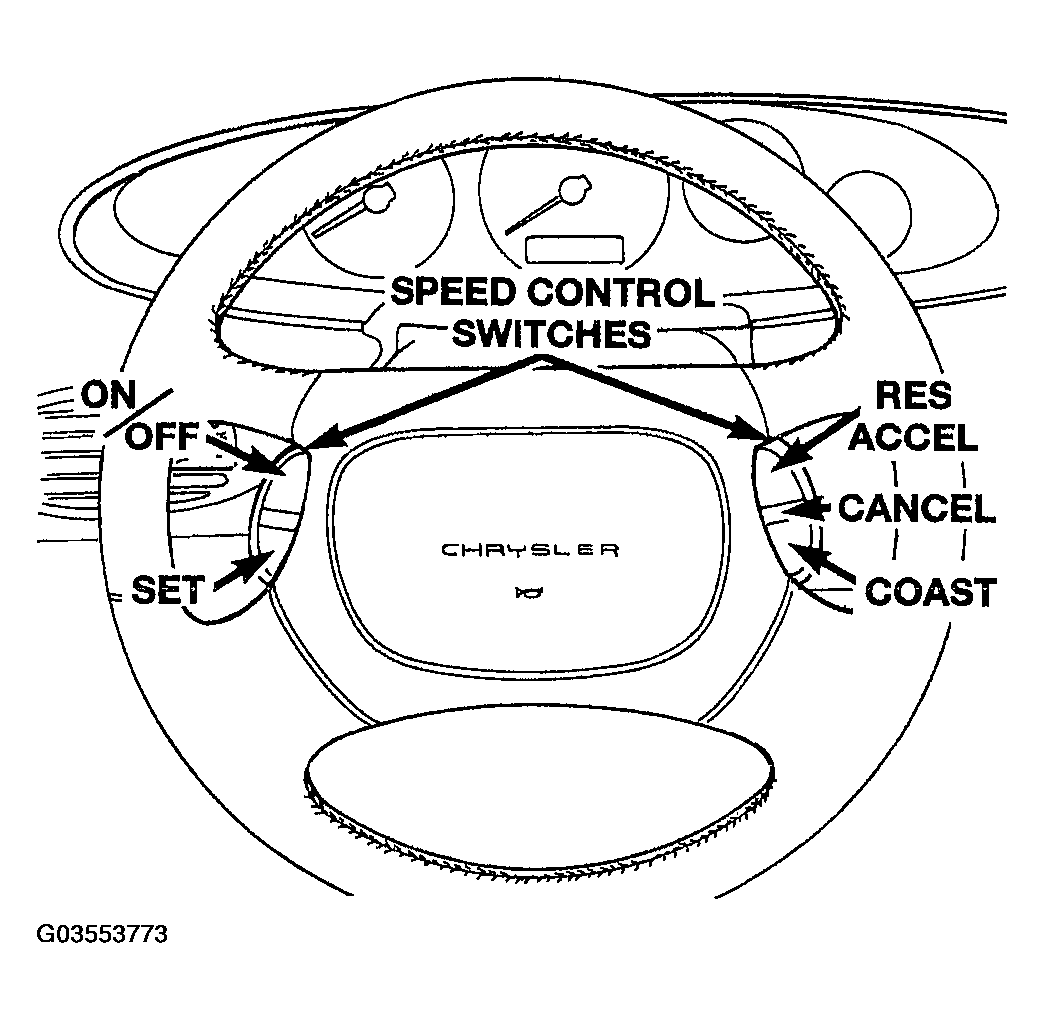

Fig 3: Identifying Speed Control Switches
G03553773Courtesy of DAIMLERCHRYSLER CORP.
