Connector End Views
>>
Wiper Control Module - Gray 7 Way Connector End View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Wiper Control Module - Gray 7 Way Connector End View

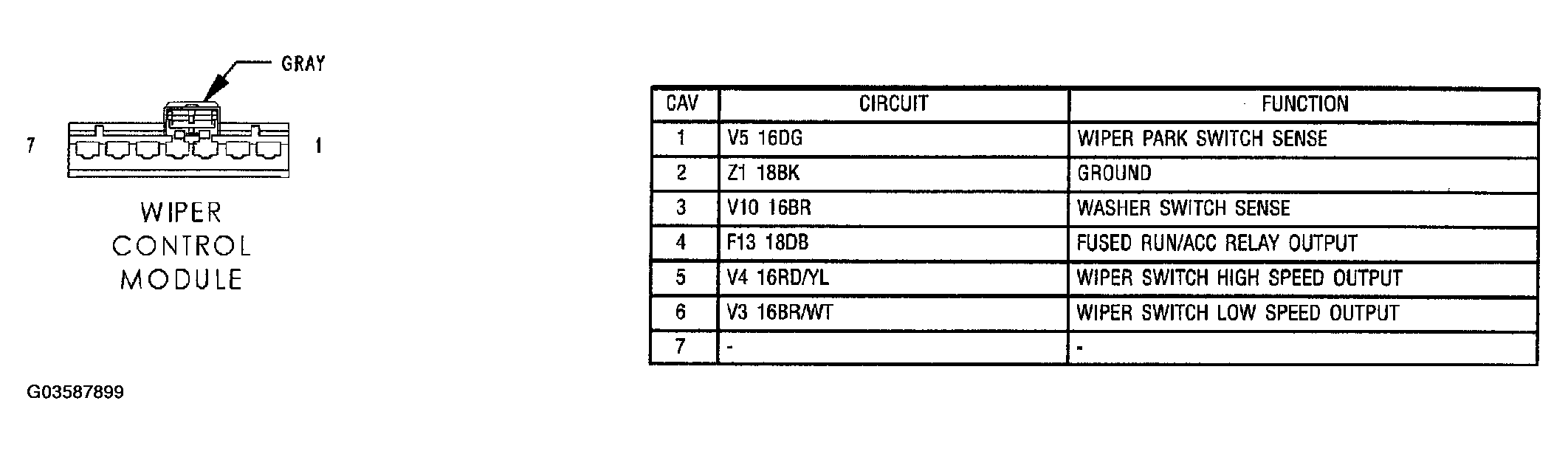

Fig 1: Wiper Control Module Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
