Fuel Tank Module - Gray 2 Way

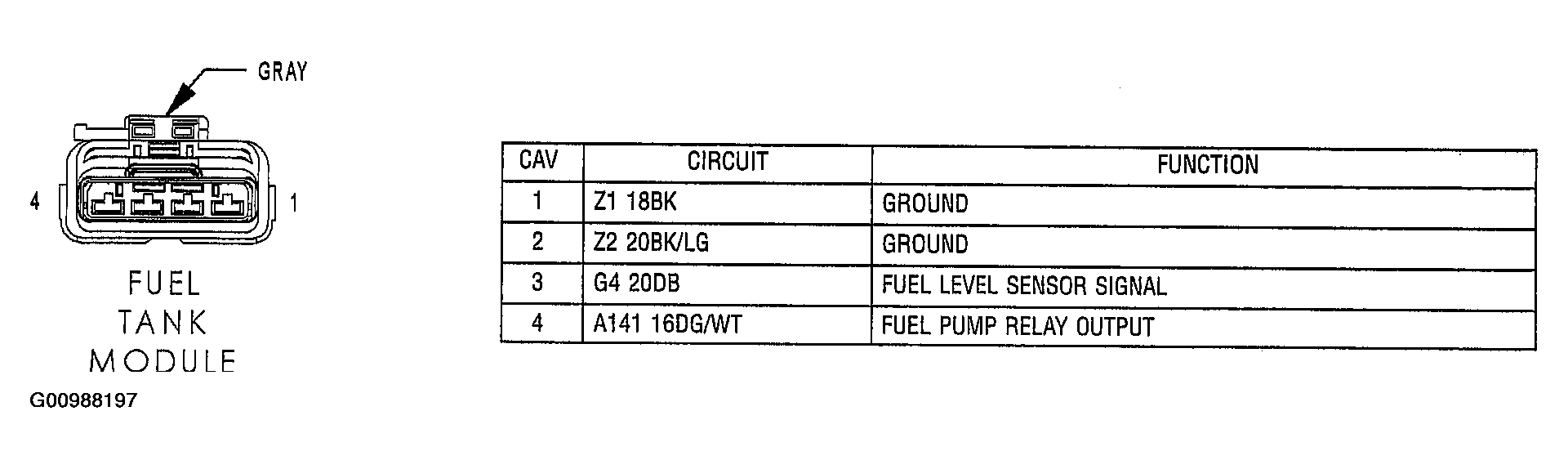

Fig 1: View Of Fuel Tank Module 2 Way Connector Pinouts And Function Description Chart
G00988197Courtesy of DAIMLERCHRYSLER CORP.
