Powertrain Control Module C1-Black/Black 32 Way

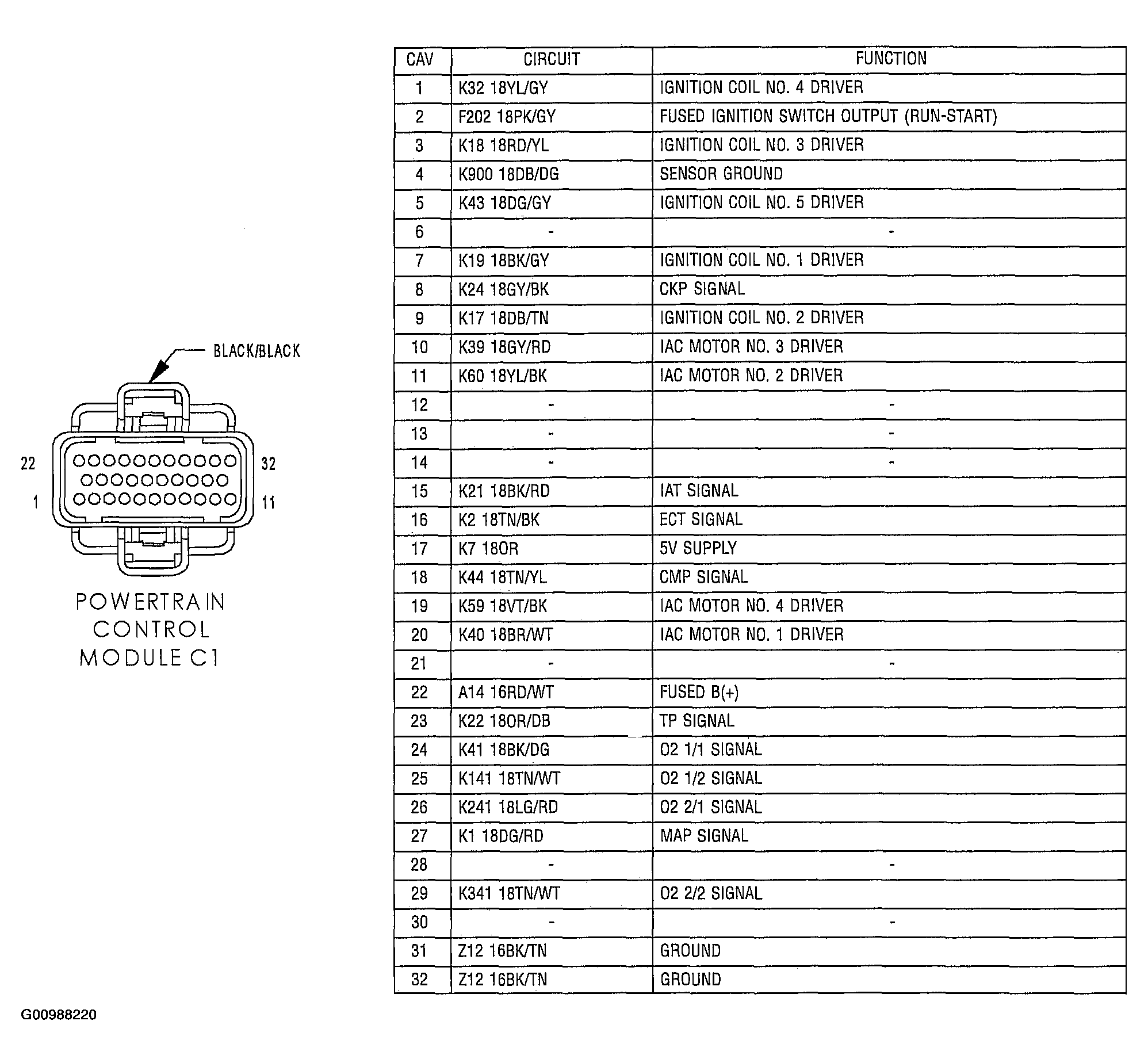

Fig 1: View Of Powertrain Control Module C1 32 Way Connector Pinouts And Function Description Chart
G00988220Courtesy of DAIMLERCHRYSLER CORP.
