Powertrain Control Module C3-Black/Gray 32 Way

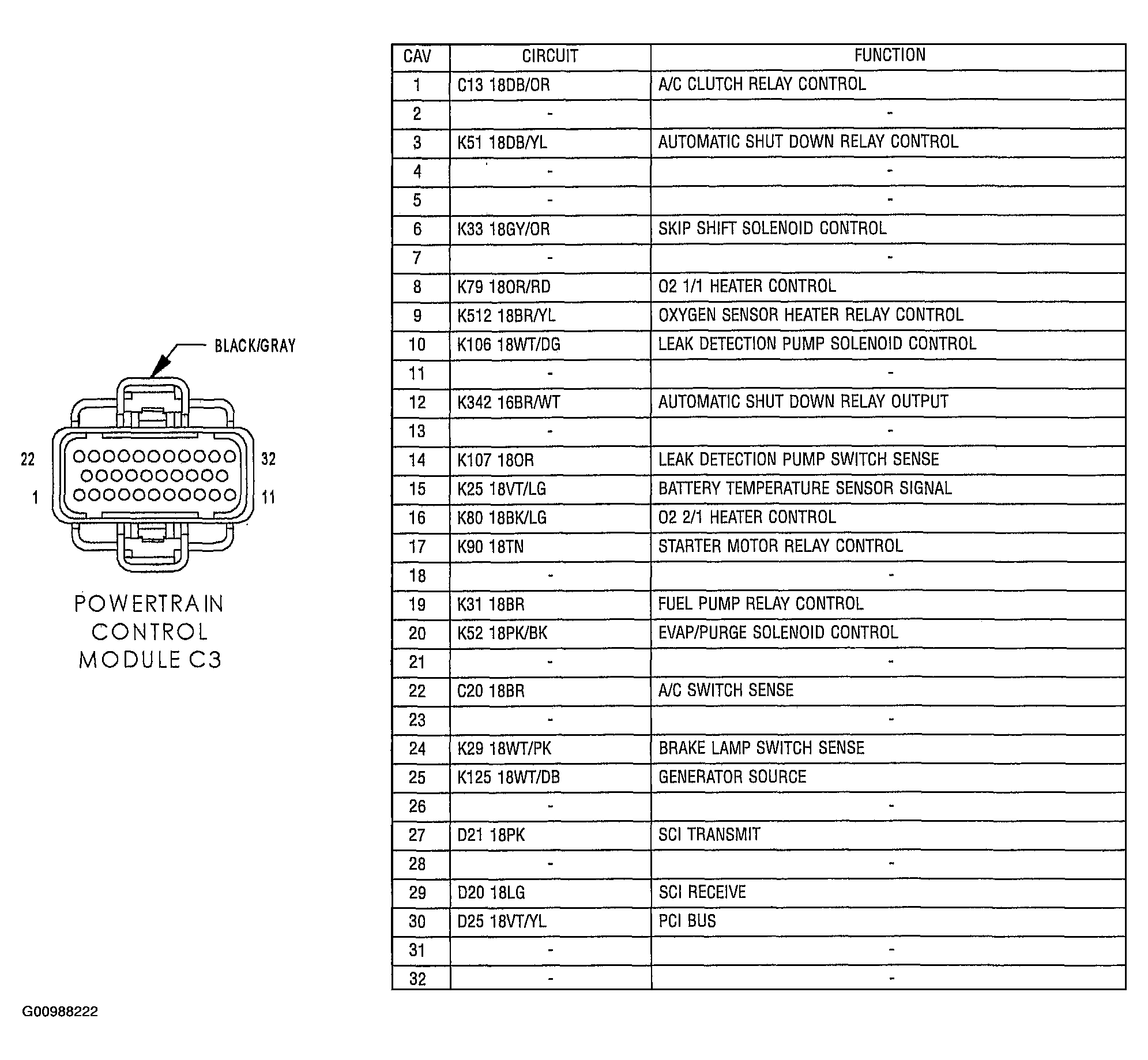

Fig 1: View Of Powertrain Control Module C3 32 Way Connector Pinouts And Function Description Chart
G00988222Courtesy of DAIMLERCHRYSLER CORP.
