Throttle Position Sensor-Black 3 Way

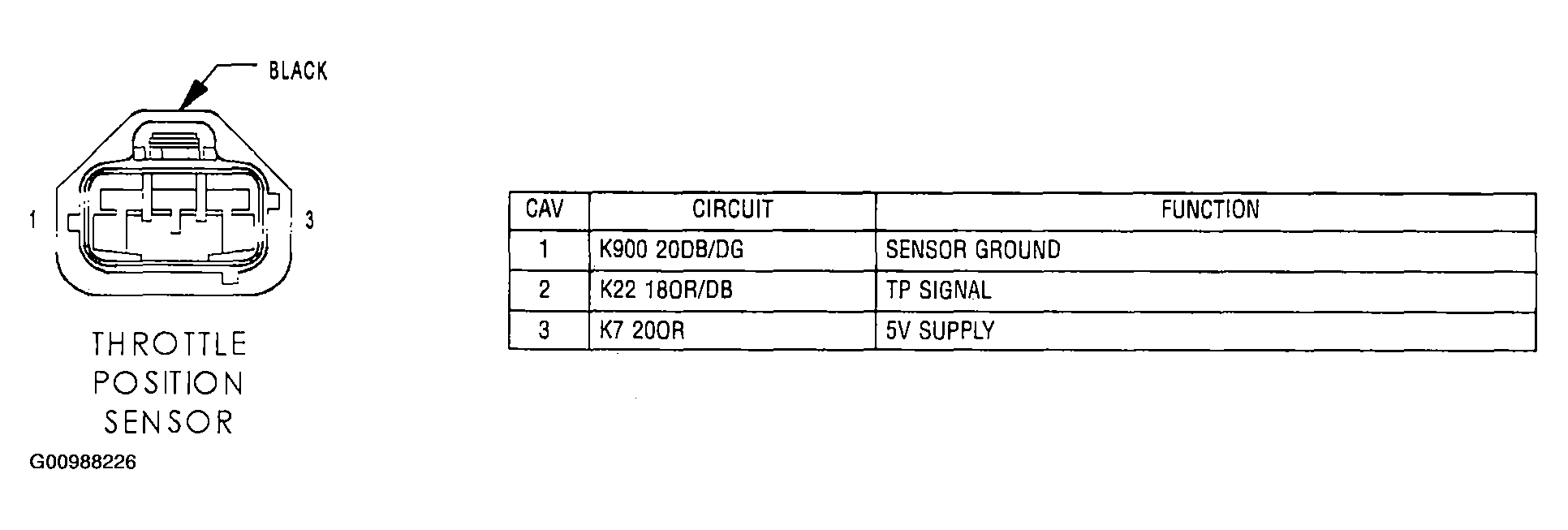

Fig 1: View Of Throttle Position Sensor 3 Way Connector Pinouts And Function Description Chart
G00988226Courtesy of DAIMLERCHRYSLER CORP.
