Rear Blower Motor Power Module

REMOVAL
1. Disconnect and isolate the negative battery cable.
2. Remove the right quarter trim panel and right D-pillar trim panel from the quarter inner panel.

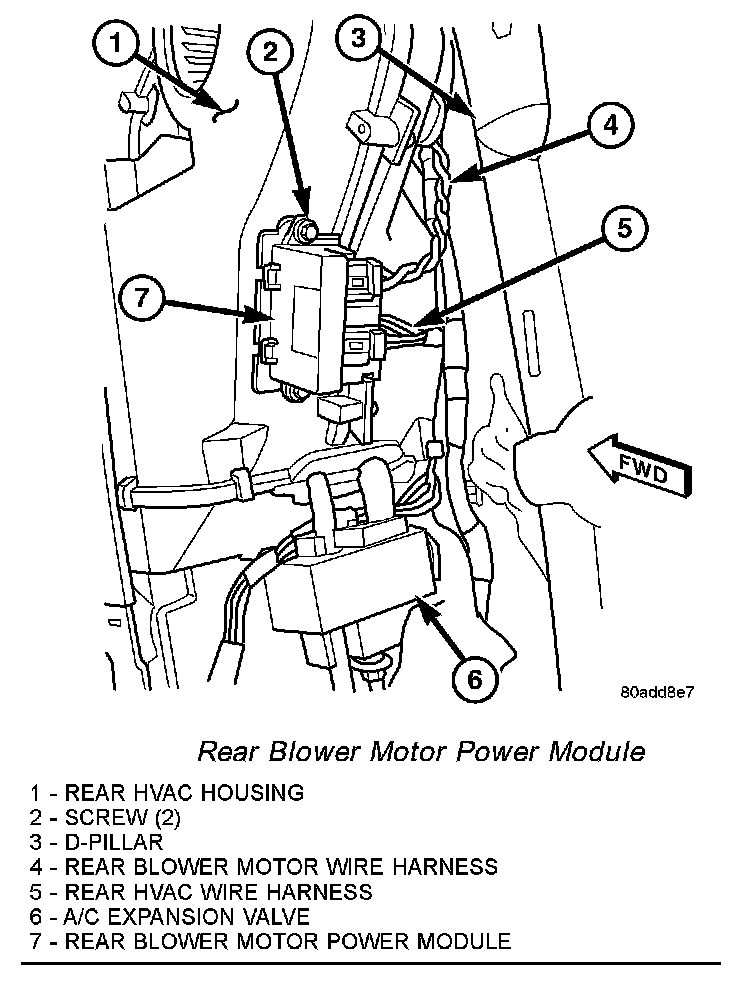

Rear Blower Motor Power Module:

3. Disconnect the rear HVAC wire harness connector from the rear blower motor power module.
4. Disconnect the rear blower motor wire harness connector from the rear blower motor power module.
5. Remove the two screws that secure the rear blower motor power module to the rear HVAC housing and remove the power module.

INSTALLATION
1. Position the rear blower motor power module into the rear HVAC housing.
2. Install the two screws that secure the rear blower motor power module to the rear HVAC housing. Tighten the screws to 2 N.m (17 in. lbs.).
3. Connect the rear blower motor wire harness to the rear blower motor power module.
4. Connect the rear HVAC wire harness connector to the rear blower motor power module.
5. Install the right quarter trim panel and right D-pillar trim panel onto the quarter inner panel.
6. Reconnect the negative battery cable.
