Fuel Pump Module - LT. Gray 4 Way

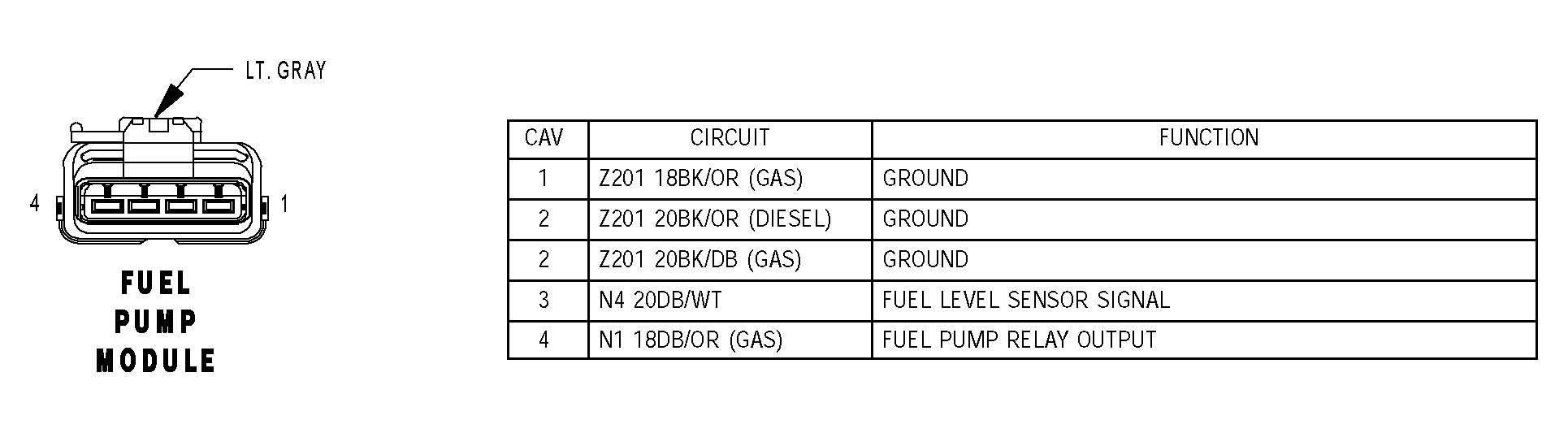

Fig 1: Identifying Fuel Pump Module - LT. Gray 4 Way Connector Pinouts
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
