B2100-Ignition Run/Start Input Circuit Performance: Notes

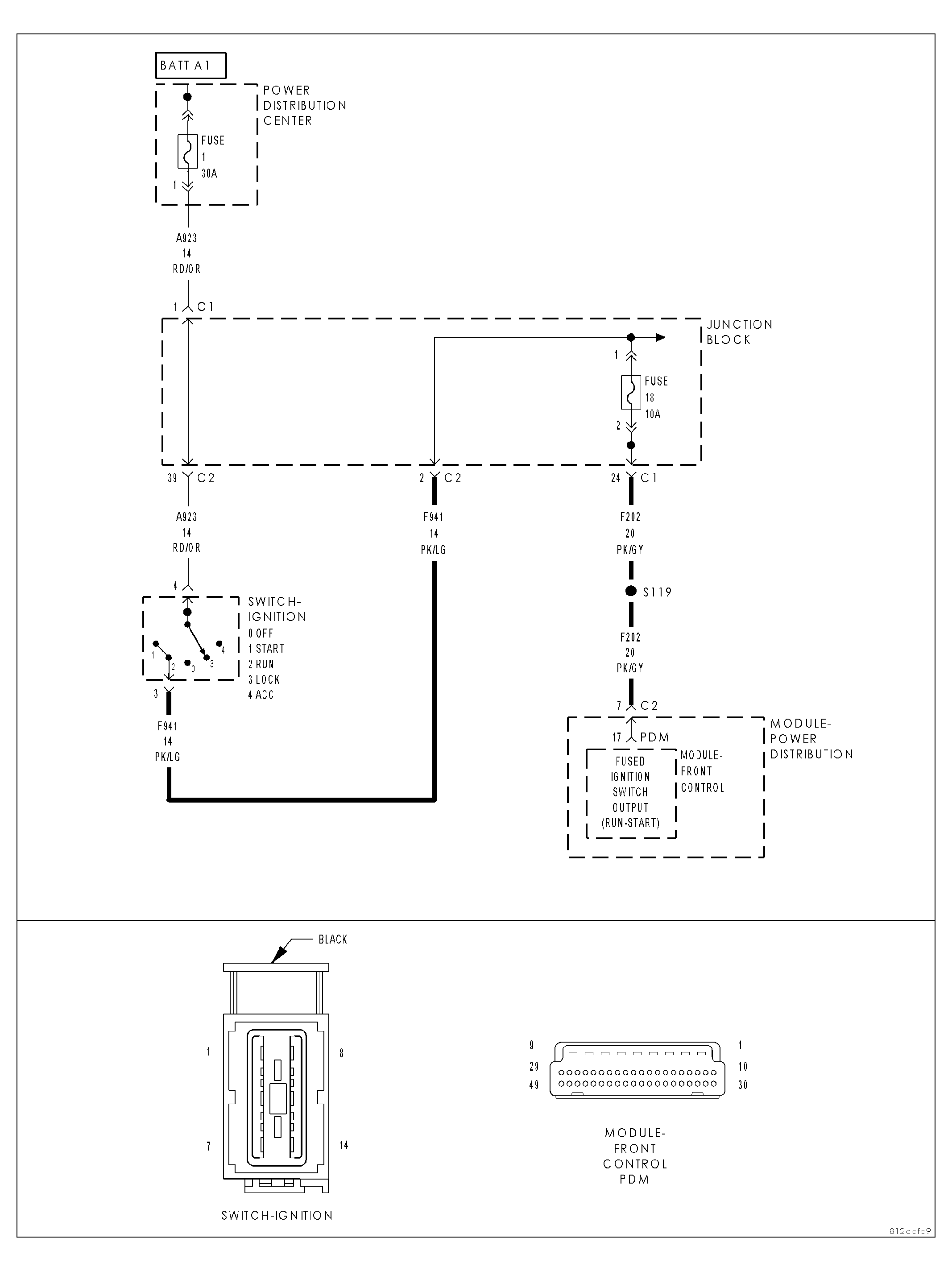

Fig 1: B2100-IGNITION RUN/START INPUT CIRCUIT PERFORMANCE
GC0012239Courtesy of DAIMLERCHRYSLER CORP.
