Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Powertrain Diagnostic Procedures
>>
Schematic Diagrams
>>
SRT-2.4L Engine
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
SRT-2.4L Engine

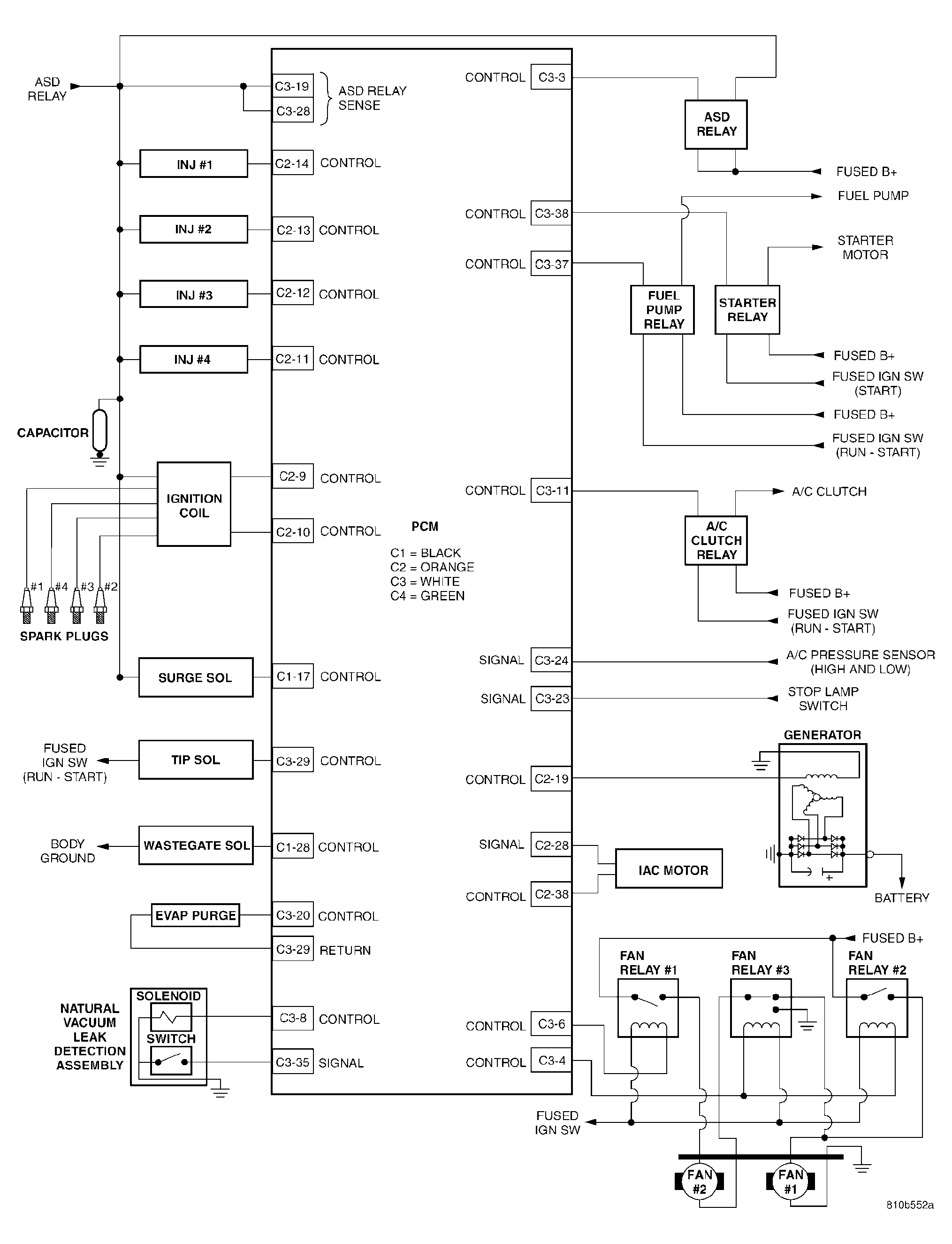

Fig 1: Schematic Diagrams - SRT-2.4L Engine
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
