Controller Antilock Brake

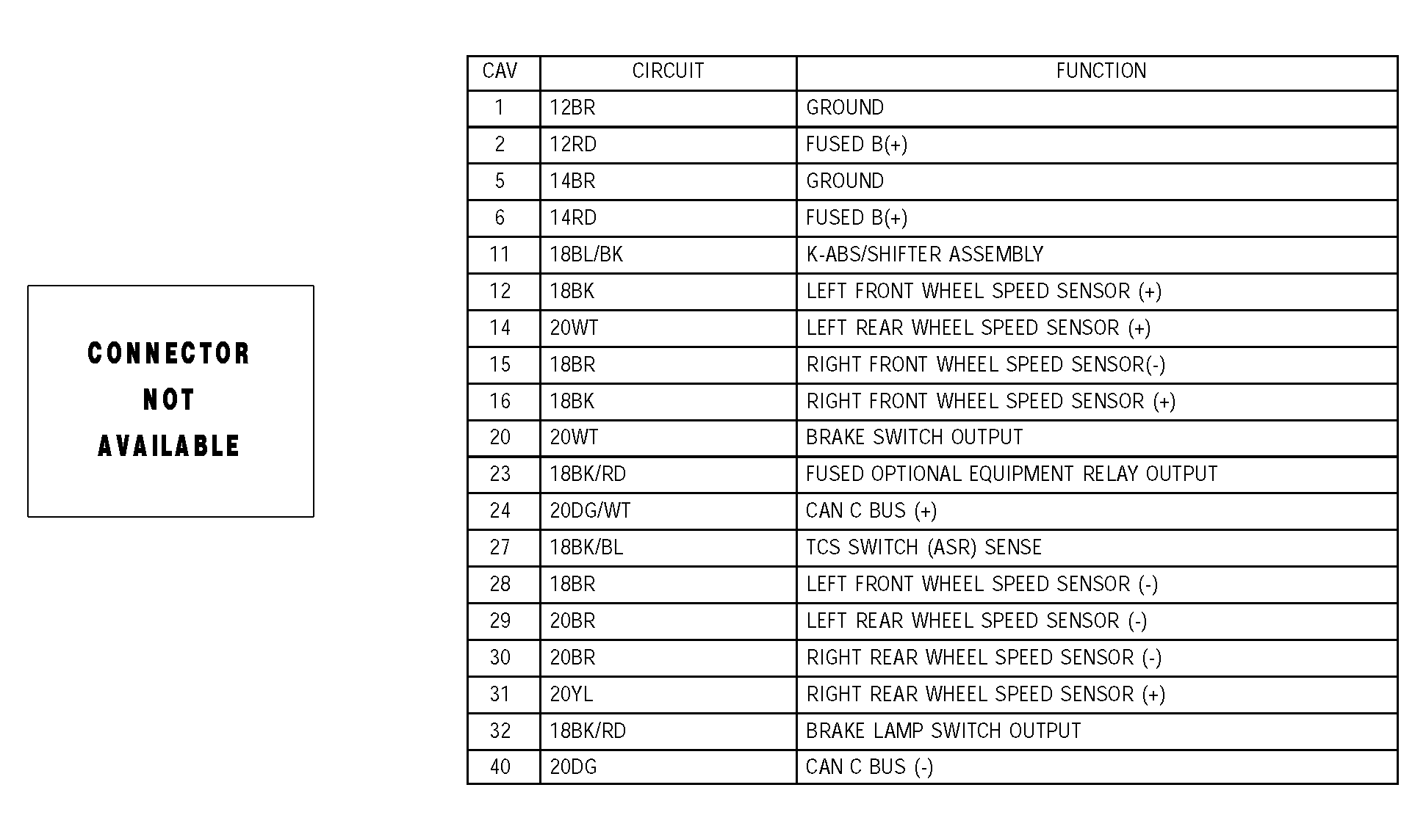

Fig 1: Identifying Controller Antilock Brake Connector Pinouts
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
