Engine Control Module (ECM)

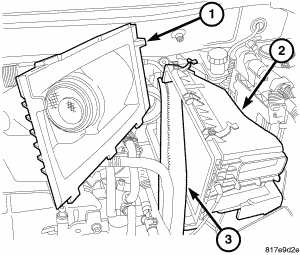

Fig 1: AIR INLET DUCT
GC0056964Courtesy of CHRYSLER LLC
  1. Remove air inlet duct (3).
  2. Disconnect negative battery cable.
  3. Disconnect vacuum hose (1).
  4. Remove air cleaner housing assembly (2). Refer to REMOVAL .
    Fig 2: ECM
    GC0056965Courtesy of CHRYSLER LLC
  5. Disconnect both ECM (2) electrical connectors by pulling tabs at ends of connectors.
  6. Remove ECM bracket retaining bolts and remove ECM (2) and bracket assembly from vehicle.
  7. Remove ECM to bracket retaining nuts and remove ECM from bracket.
