Trunk / Liftgate Closer Module

Component ID: 252
Component : LIFTGATE CINCH/RELEASE MOTOR

Connector:
Name : LIFTGATE CINCH/RELEASE MOTOR
Color : BLUE
# of pins : 7
Qualifier : (POWER LIFTGATE)




Pin Description Circuit
1 GROUND Z78 20BK/OR
2 LIFTGATE AJAR SWITCH SENSE G78 20VT/OR
3 LIFTGATE PAWL SWITCH SENSE Q60 20OR/YL
4 GROUND Z245 18BK/GY
5 LIFTGATE LATCH RELEASE DRIVER Q85 18TN/WT
6 LIFTGATE LATCH CINCH DRIVER Q84 18TN/GY
7 LIFTGATE LATCH CLUTCH DRIVER Q83 18OR/GY

Component Location - 51

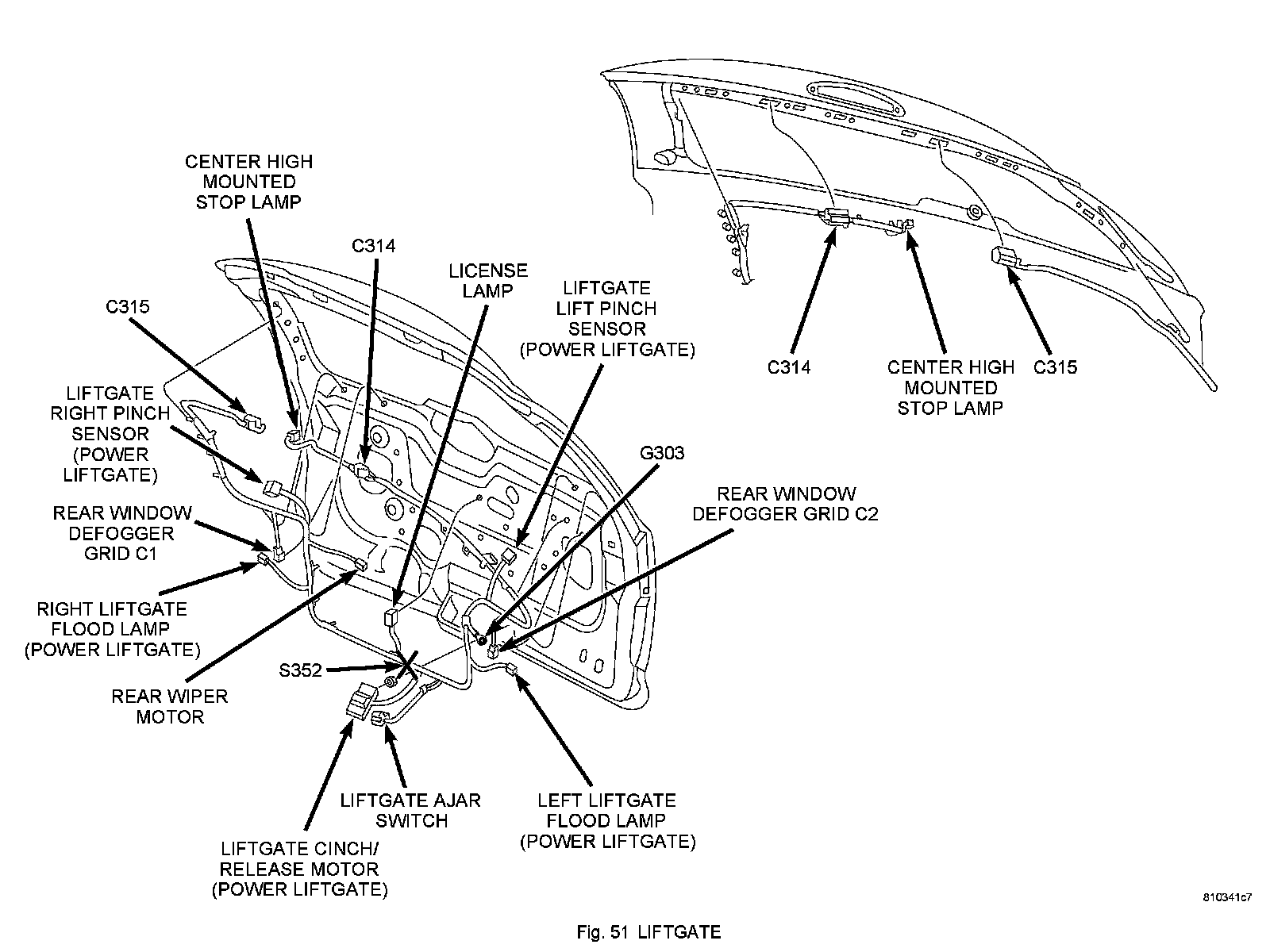

Fig. 51:
