Rear Blower Motor Power Module - Removal

REMOVAL
1. Remove rear HVAC housing and place it on a workbench.

2. Disconnect the rear blower motor wire lead from the rear blower motor power module (Figure 1).

3. Disconnect the rear HVAC wire harness from the rear blower motor power module.

4. Remove the two screws that secure the rear blower motor power module to the rear HVAC housing and remove the power module.

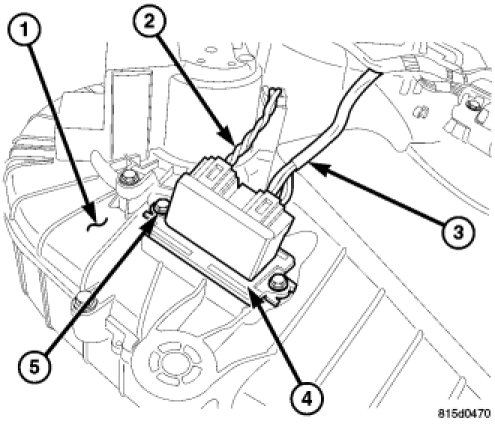

Figure 1 Rear Blower Motor Power Module
