Alignment: Testing and Inspection






DIAGNOSIS AND TESTING - SUSPENSION AND STEERING

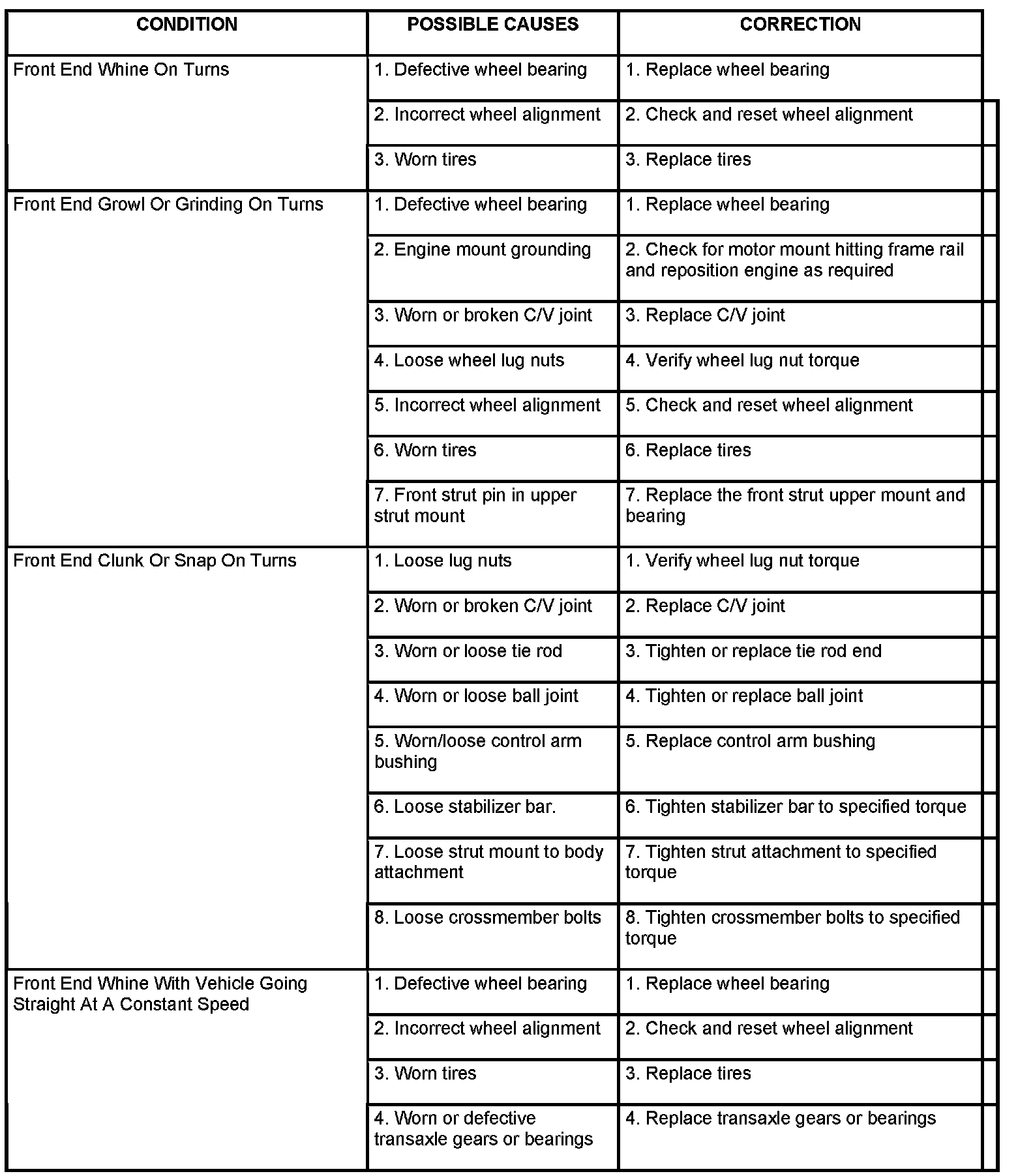

Suspension and Steering Diagnostic Chart (Part 1):

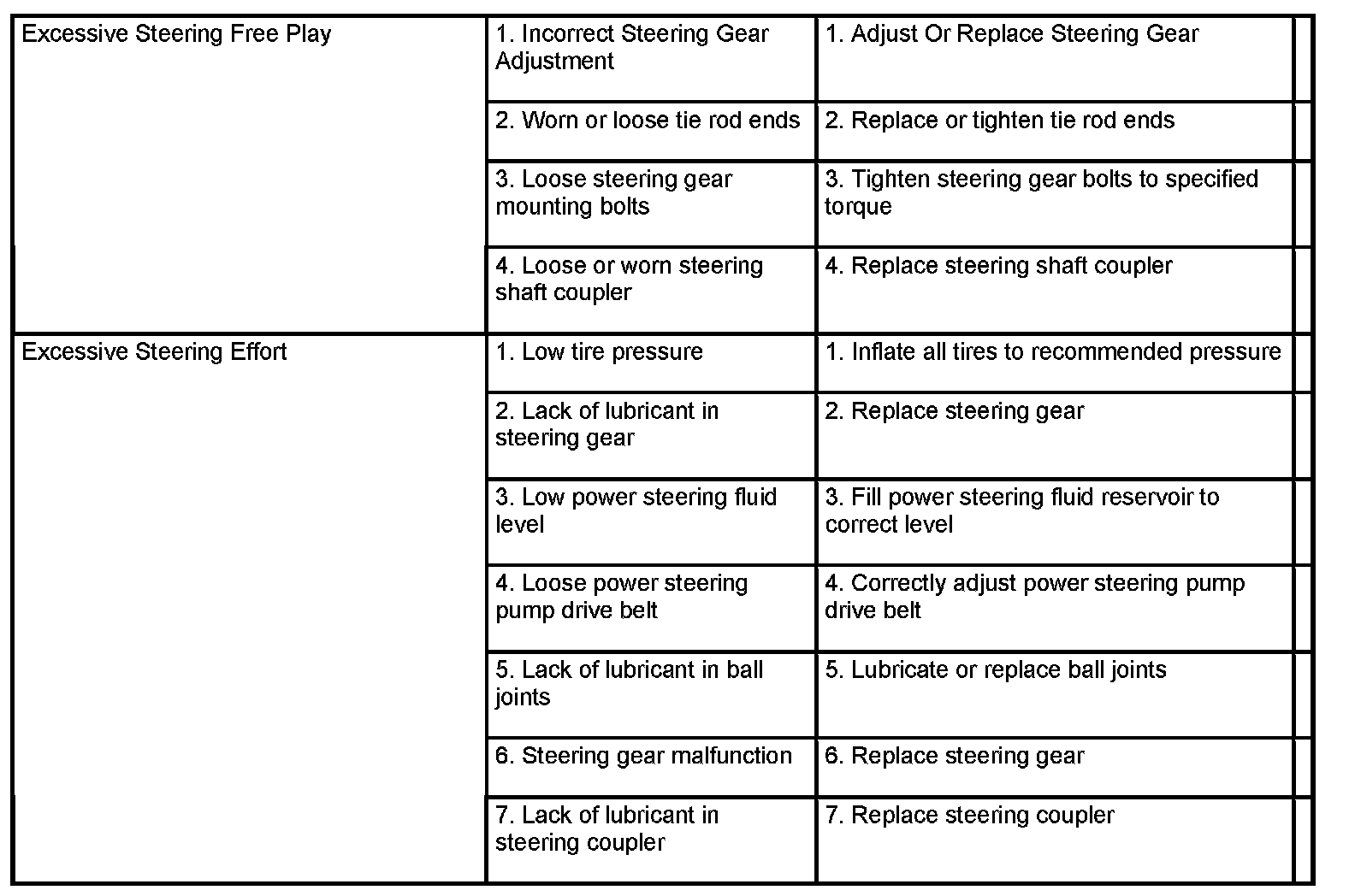

Suspension and Steering Diagnostic Chart (Part 2):

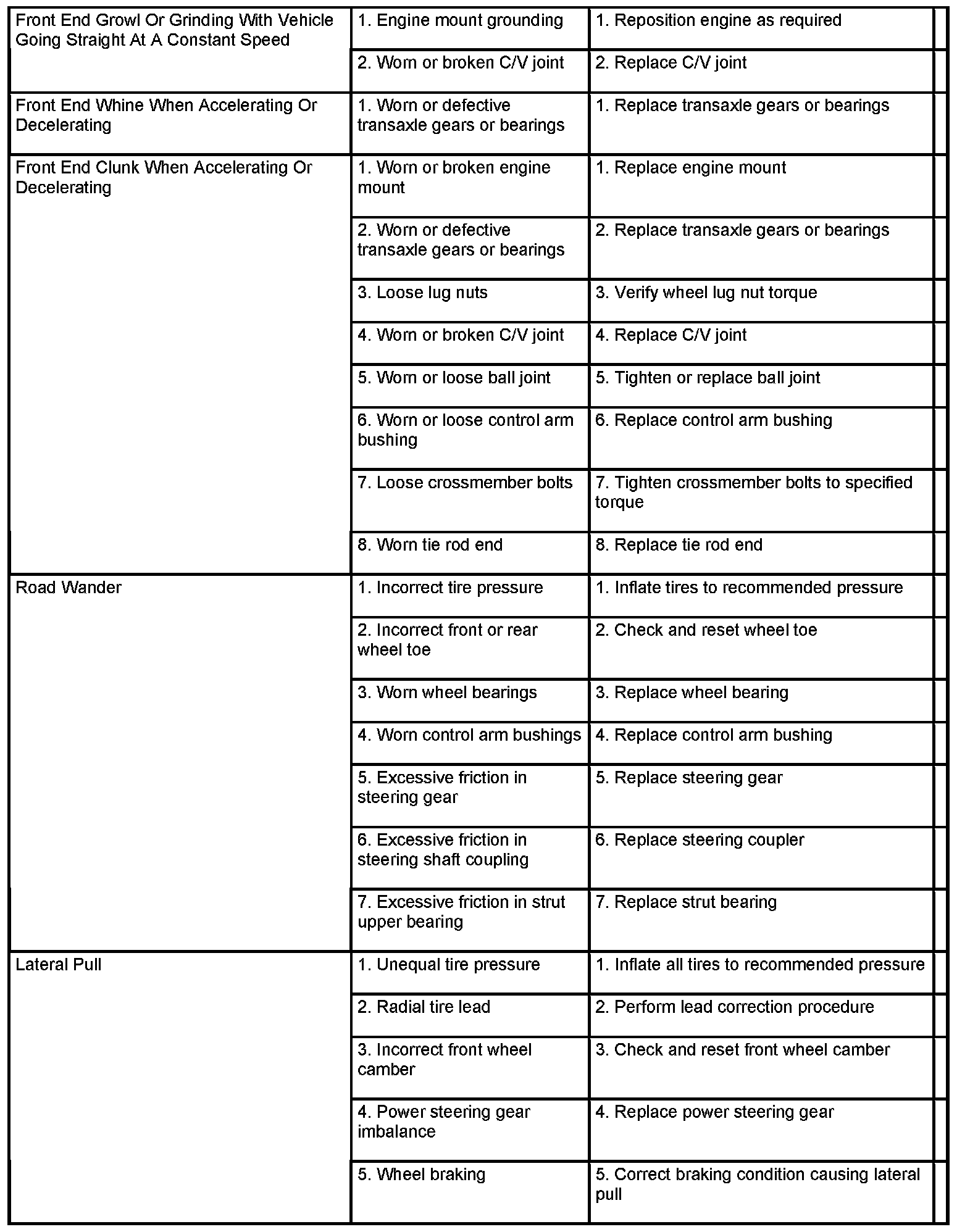

Suspension and Steering Diagnostic Chart (Part 3):
