Throttle Position Sensor: Locations

Component ID: 505
Component : THROTTLE POSITION SENSOR

Connector:
Name : THROTTLE POSITION SENSOR
Color : GRAY
# of pins : 3
Qualifier : (GAS)




Pin Description Circuit
1 SENSOR GROUND K900 20DB/DG
2 TP SIGNAL K22 20BR/OR
3 5 VOLT SUPPLY F855 20PK/YL

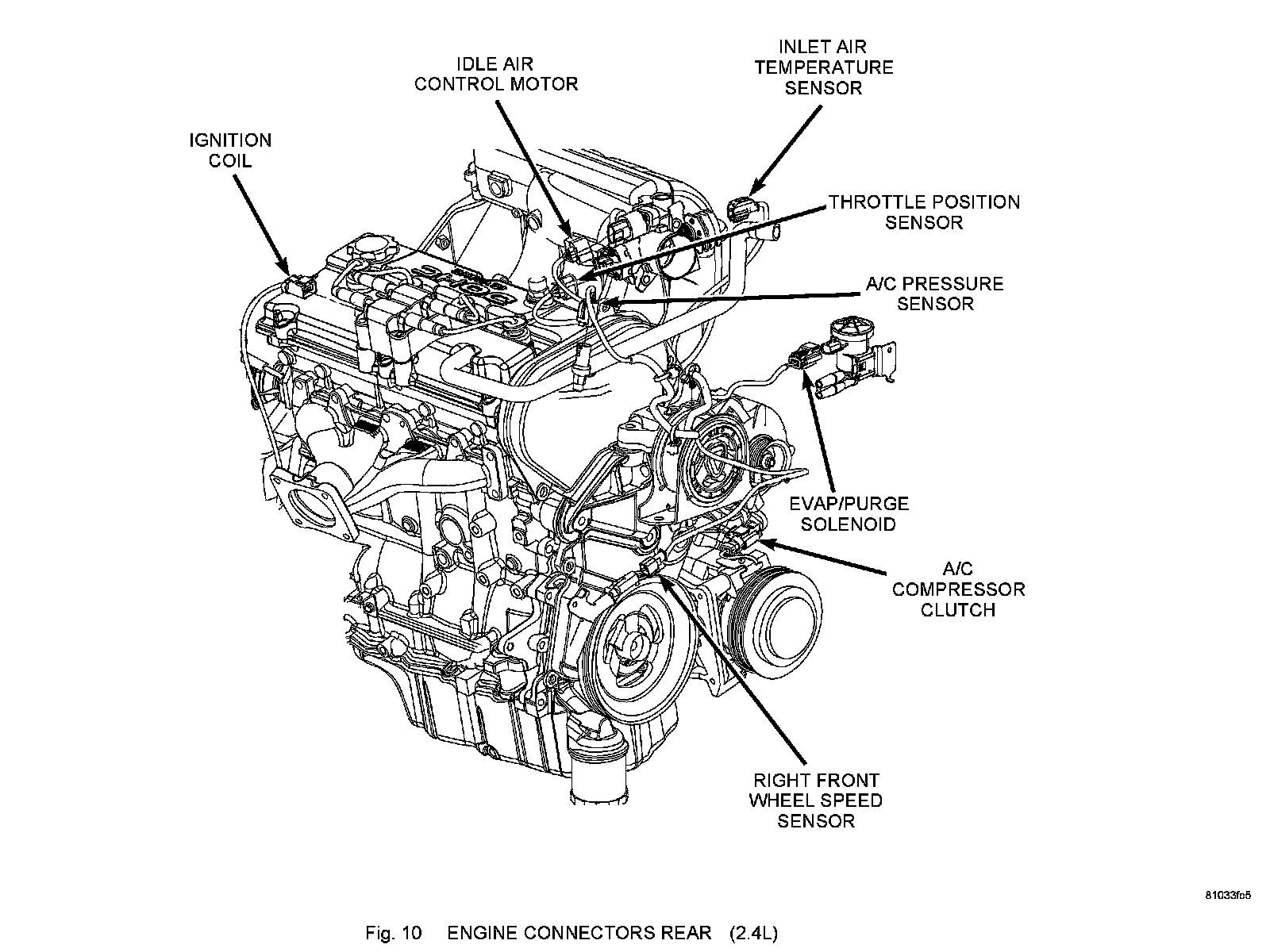

Component Location - 10

Fig. 10:

Component Location - 11

Fig. 11:

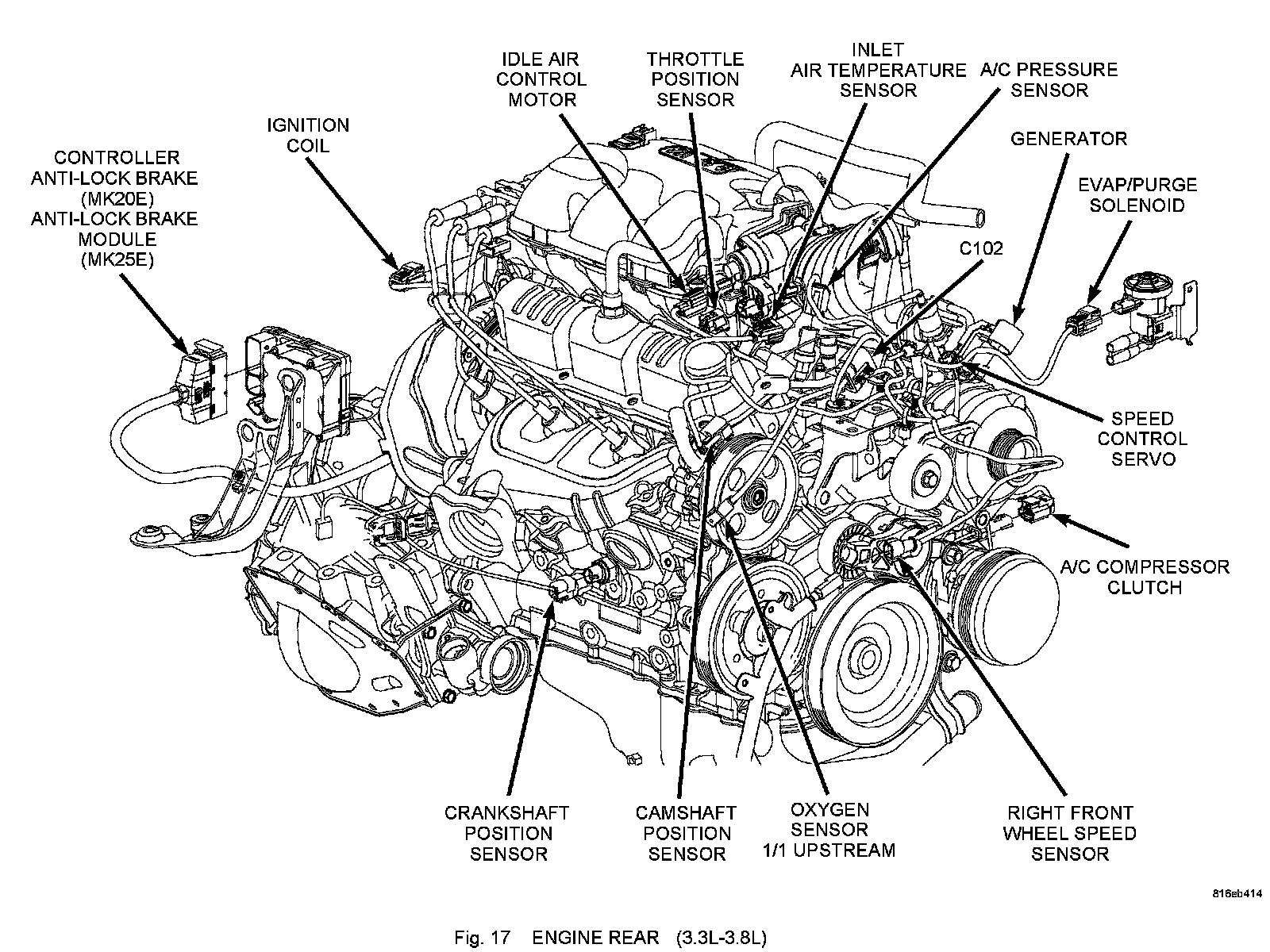

Component Location - 17

Fig. 17:
