Procedures
TRANSMISSION RANGE SENSORREMOVAL
1) Remove valve body assembly from transaxle.

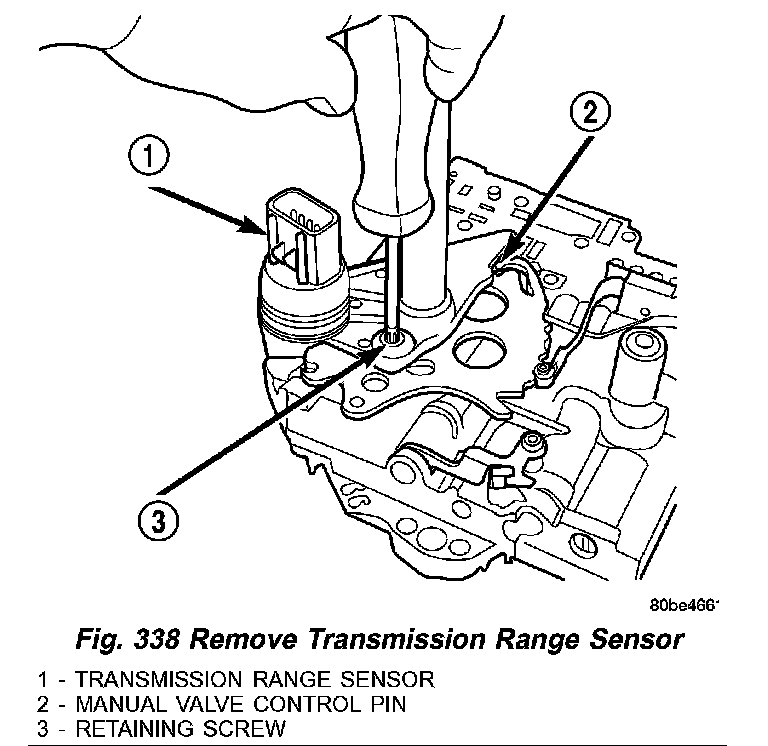

Fig. 338 Remove Transmission Range Sensor:
2) Remove transmission range sensor retaining screw (3) (Fig. 338) and remove sensor (1) from valve body.
3) Remove TRS (1) from manual shaft.
INSTALLATION

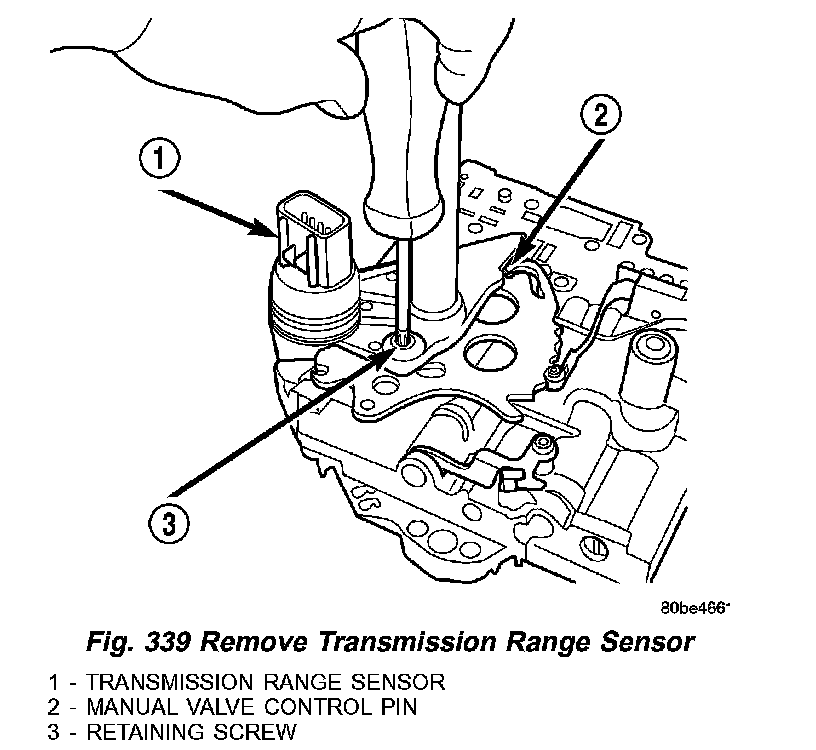

Fig. 339 Remove Transmission Range Sensor:
1) Install transmission range sensor (TRS) (1) (Fig. 339) to the valve body and torque retaining screw (3) to 5 Nm (45 inch lbs.).
2) Install valve body to transaxle.
