Connector Views

Component ID: 513
Component : VEHICLE SPEED SENSOR

Connector:
Name : VEHICLE SPEED SENSOR
Color : BLACK
# of pins : 3
Qualifier : (MTX)




Pin Description Circuit
1 FUSED IGNITION SWITCH OUTPUT (RUN-START) F202 18PK/GY
Pin Description Circuit
1 5 VOLT SUPPLY F855 20PK/YL
2 SENSOR GROUND K900 20DB/DG
3 VEHICLE SPEED SENSOR SIGNAL N7 20DB/OR
3 VEHICLE SPEED SIGNAL N7 18DB/OR

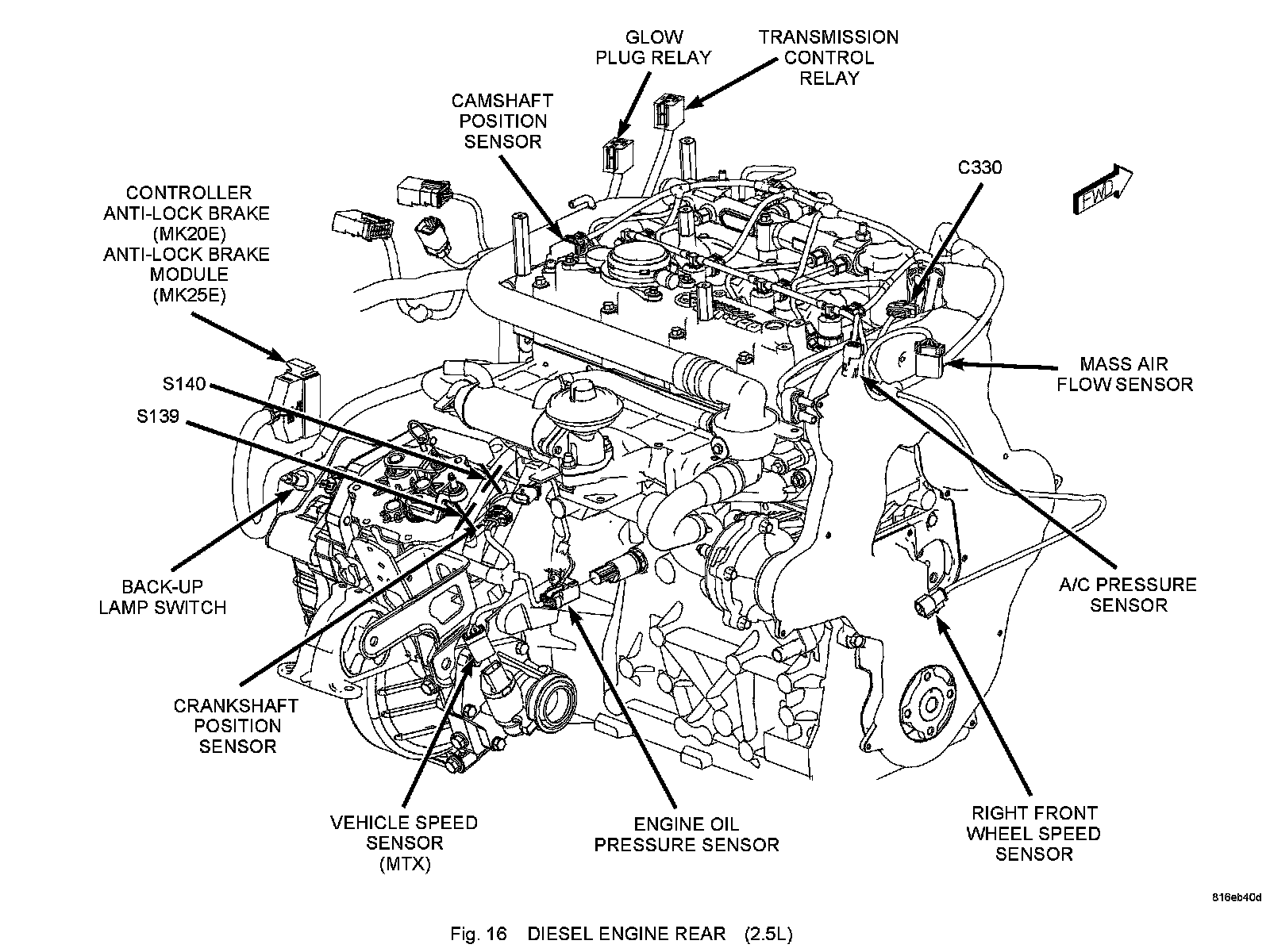

Component Location - 16

Fig. 16:
