Removal

REMOVAL

1. Disconnect and isolate the battery negative cable.

2. Remove the left D-pillar trim panel from the vehicle.

3. Disconnect the wire harness connections from the power liftgate motor assembly.

4. Remove the screw holding the power liftgate control module to the D-pillar (Figure 1).

5. Remove the power liftgate control module from the vehicle.

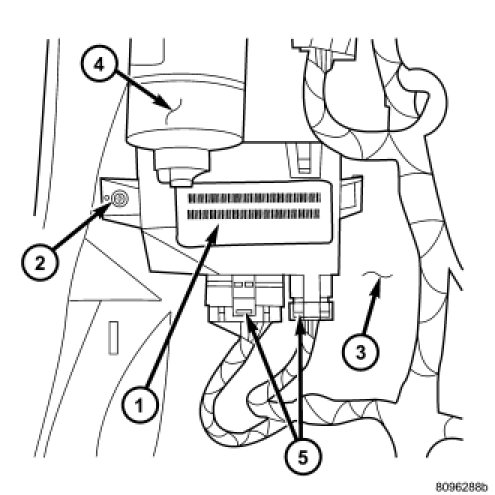

Figure 1 POWER LIFTGATE CONTROL MODULE
