Engine Torque Specifications

SPECIFICATIONS - TORQUE

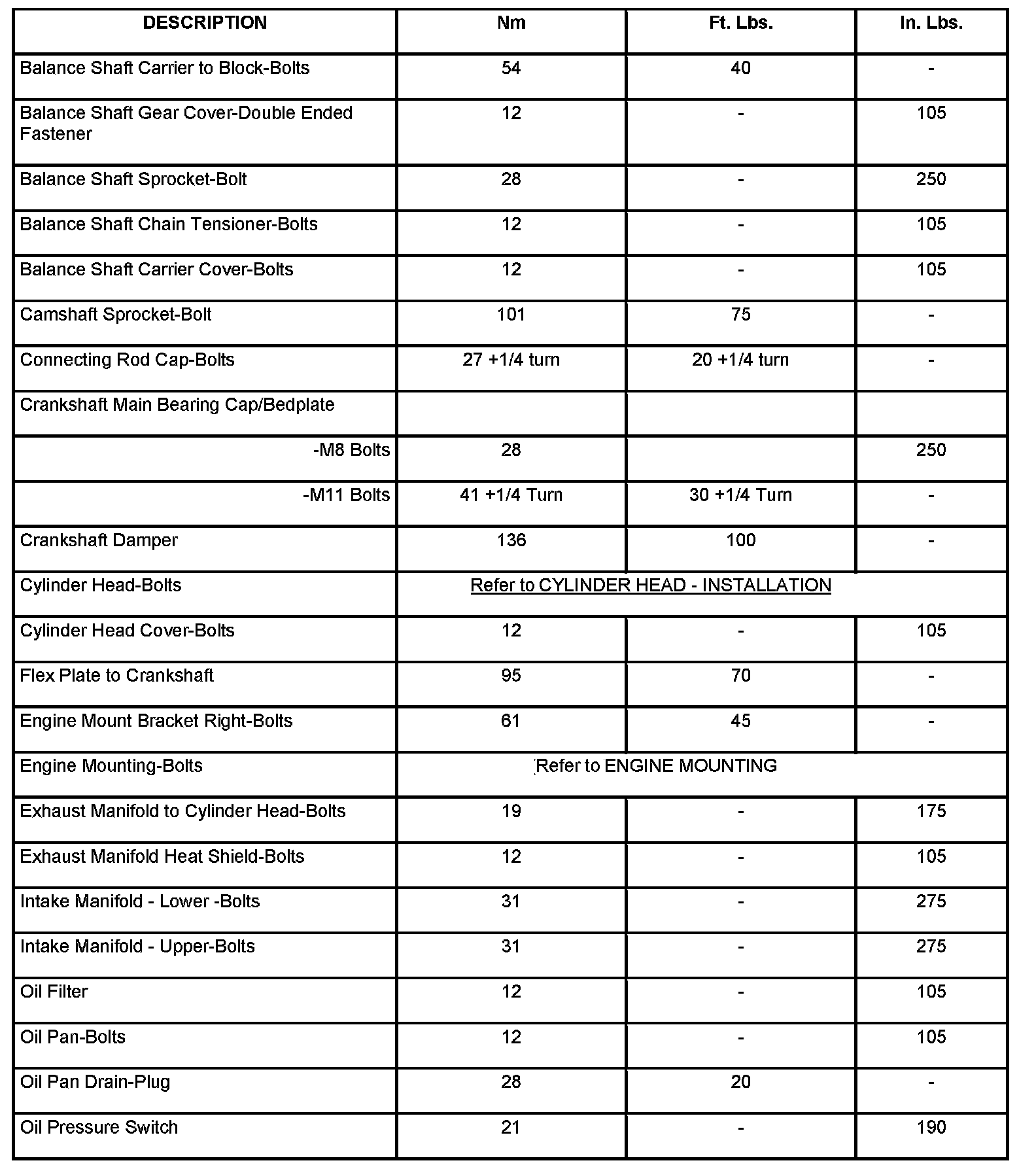

SPECIFICATIONS - TORQUE (Part 1):

TORQUE (Part 1)

SPECIFICATIONS - TORQUE (Part 2):

TORQUE (Part 2)

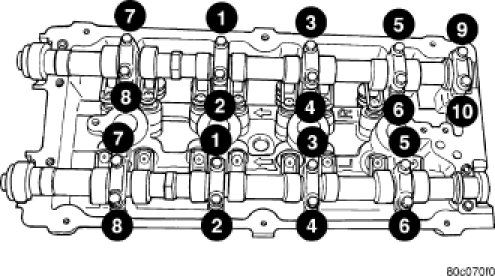

CAMSHAFT BEARING CAPS






Install right and left camshaft bearing caps No. 2 - 5 and right No. 6.
Tighten M6 fasteners to 12 Nm (105 in. lbs.)
Apply Mopar(R) Gasket Maker to No. 1 and No. 6 bearing caps.
Install bearing caps and tighten M8 fasteners to 28 Nm (250 in. lbs.)

WATER PUMP
Assemble pump body to block and tighten screws to 12 Nm (105 in. lbs.)
