System Specifications

Description:

Description

Cylinder Block:

Cylinder Block

Pistons:

Pistons

Piston Pins:

Piston Pins

Piston Rings:

Piston Rings

Piston Ring Side Clearance:

Piston Ring Side Clearance

Piston Ring Width:

Piston Ring Width

Connecting Rods:

Connecting Rods

Crankshaft Main Bearing Journals:

Crankshaft Main Bearing Journals

Connecting Rod Journals:

Connecting Rod Journals

Cylinder Block Surface Variation
Deck surface must be within service limit of 0.1 mm (0.004 in.).

Connecting Rod Cap-Bolts 27 Nm +1/4 Turn (20 ft. lbs.) +1/4 Turn





Crankshaft Main Bearing Cap
Inner Main Cap Bolts 20 Nm +1/4 Turn (15 ft. lbs.) +1/4 Turn
Outer Main Cap Bolts 27 Nm +1/4 Turn (20 ft. lbs.) +1/4 Turn

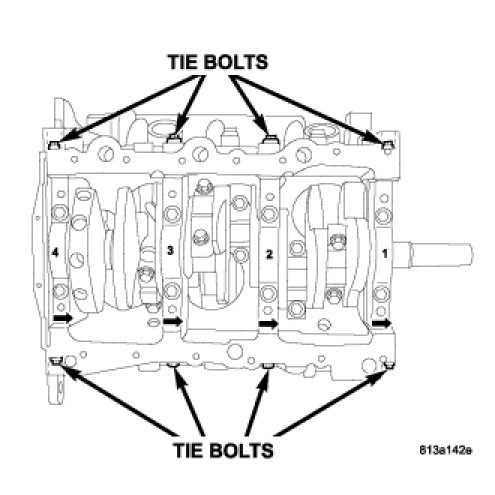

Tie Bolts (Horizontal) 28 Nm (250 in. lbs.)

Crankshaft Damper-Bolt 95 Nm (70 ft. lbs.)
