Intake Manifold

Intake Manifold - Lower 28 Nm (250 in. lbs.)

Intake Manifold - Upper 12 Nm (105 in. lbs.)

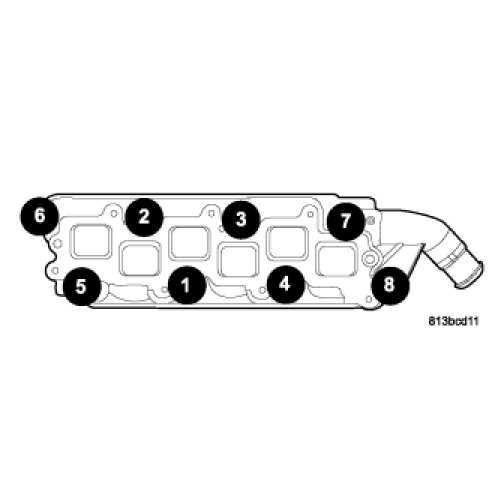

starting in the center working outward in a cross sequence pattern.

Throttle Body
Install the throttle bracket. Tighten fasteners to 12 Nm (105 in. lbs.)
and 28 Nm (259 in. lbs.) at the cylinder head.
