Installation

INSTALLATION

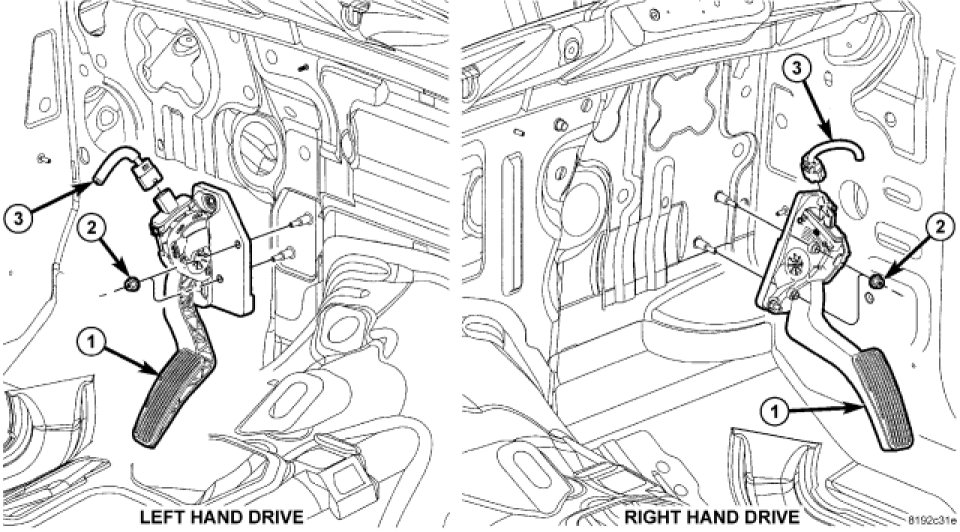

The accelerator pedal and APPS (Accelerator Pedal Position Sensor) are serviced as a complete assembly including the bracket.

1. Position accelerator pedal/APPS assembly over two mounting studs.

2. Install two accelerator pedal mounting bracket nuts (2).

3. Connect electrical connector (3) at APPS.

4. Before starting engine, operate accelerator pedal to check for any binding.
