Installation

INSTALLATION - 3.7L

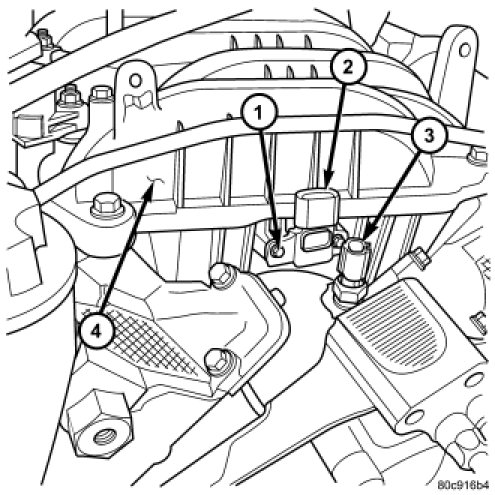

The Manifold Absolute Pressure (MAP) sensor (2) is mounted into the front of the intake manifold . An O-ring is used to seal the sensor to the intake manifold.

1. Clean MAP sensor mounting hole at intake manifold.

2. Check MAP sensor O-ring seal for cuts or tears.

3. Position sensor (2) into manifold.

4. Install MAP sensor mounting bolts (screws) (1). Tighten screws to 3 Nm (25 in. lbs.) torque.

5. Connect electrical connector.
