Circuit Schematic

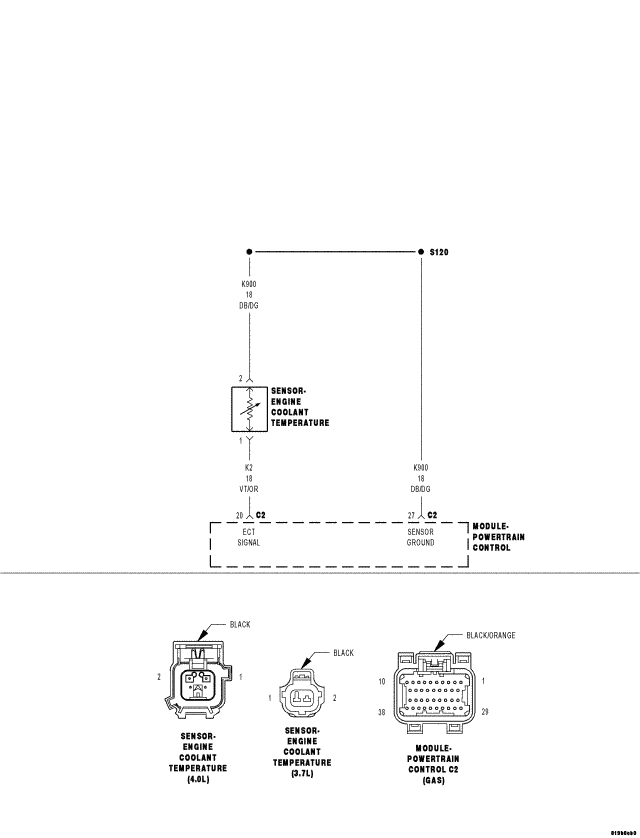

Fig 1: Engine Coolant Temperature Sensor Circuit Schematic

GC0062068

Courtesy of CHRYSLER LLC
