Installation

INSTALLATION

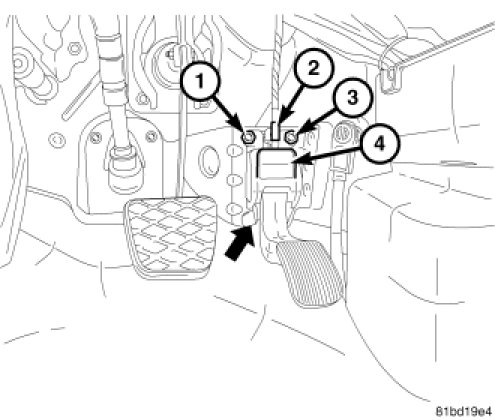

1. Install the Accelerator Pedal Position Sensor module (4).
2. Tighten the mounting nuts (1) and (3). Tighten to 8 Nm (71 in. lbs.).
3. Connect the Harness Connector (2).
4. Connect negative battery cable.
