Installation

INSTALLATION





1. Position the front fender to the vehicle.

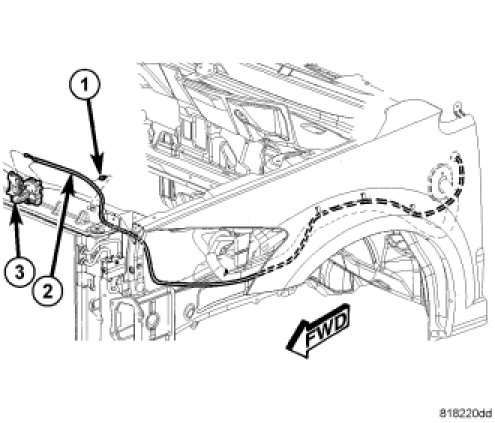

2. Clip hood latch cable to fender.
3. Loosely install the fasteners that secure the top of the front fender.
4. Loosely install the fasteners that secures front fender to the side cowl panel.
5. Install the fasteners that secure the bottom of the front fender to the lower rocker panel.
6. If servicing the right front fender, install the antenna body and cable Antenna Body & Cable - Installation.
7. Install the front wheelhouse splash shields Front Wheelhouse Splash Shield - Installation.
8. Lower the vehicle.
9. Check fender for flush and gap and adjust as necessary.
10. Tighten fender fasteners to 14 Nm (124 in. lbs.)
11. Install the headlamp housing Front Lamp Unit - Installation.
