P0404-EGR Position Sensor Performance: Notes

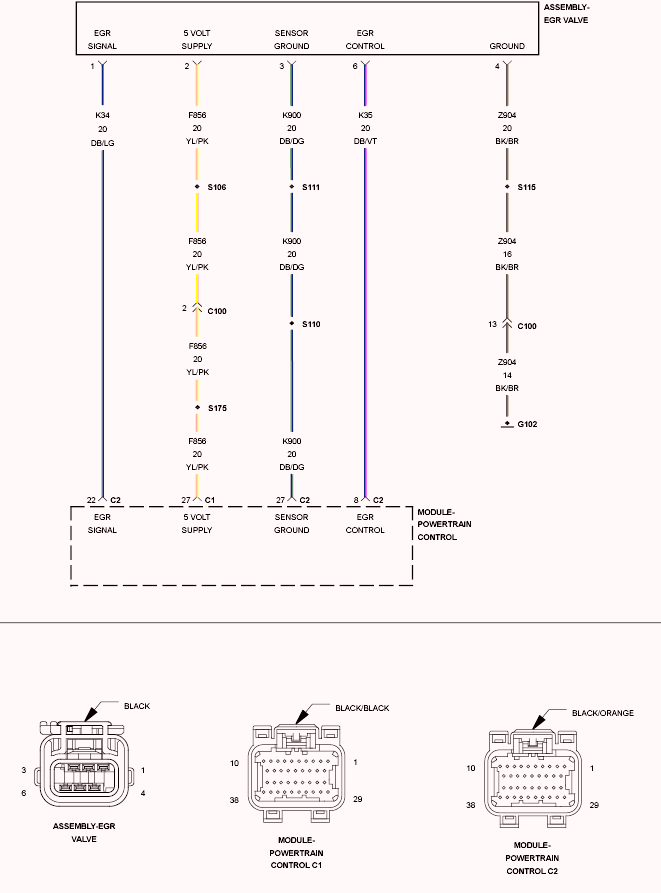

Fig 1: Exhaust Gas Recirculation (EGR) Valve Circuit Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
