Slider, Steering Column: Installation: Installation

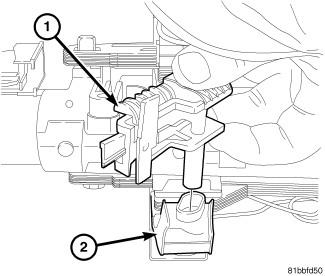

Fig 1: Slider Sled & Lever Arm

Courtesy of CHRYSLER GROUP, LLC

1. Position the slider sled (1) as shown in illustration and insert it into the lever arm (2).

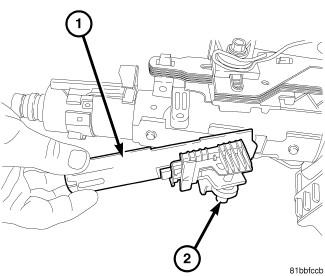

   Fig 2: Slider Bar & Sled

   Courtesy of CHRYSLER GROUP, LLC
2. Insert the slider bar (1) through the slider sled (2) as shown in illustration.

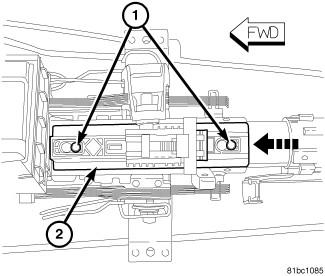

   Fig 3: Retainer Pins - Slider Installation

   Courtesy of CHRYSLER GROUP, LLC
3. Place the slider bar onto the column by aligning the large holes in the mounting slots with the casting pins (1) on the column, then slide the slider bar (2) into mounted position.
   Fig 4: Latch Tilt Lever To Column

   Courtesy of CHRYSLER GROUP, LLC
4. Position the tilt and telescoping adjustment handle (2) over the column adjustment pin (on slider sled) and rotate the locking tab (3) rearward as shown in illustration latching the handle to the column. Make sure the tab snaps into locked position.
   Fig 5: Instrument Panel Steering Column Cover Reinforcement & Bracket

   Courtesy of CHRYSLER GROUP, LLC
5. Install the steering column opening reinforcement (1).
6. Install the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, INSTALLATION .
7. Test the steering column tilt and telescoping operation.
