Removal

5.7L V-8





The Manifold Absolute Pressure (MAP) sensor (1) is mounted to the front of the intake manifold air plenum box.

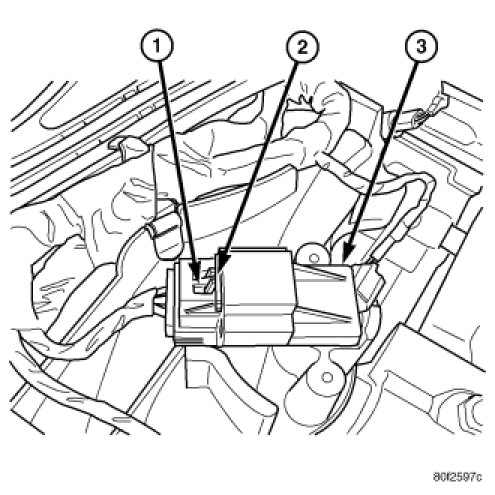

1. Disconnect electrical connector at sensor by sliding release lock out (1). Press down on lock tab (2) for removal.
2. Rotate sensor 1/4 turn counterclockwise for removal.
3. Check condition of sensor O-ring.
