Removal

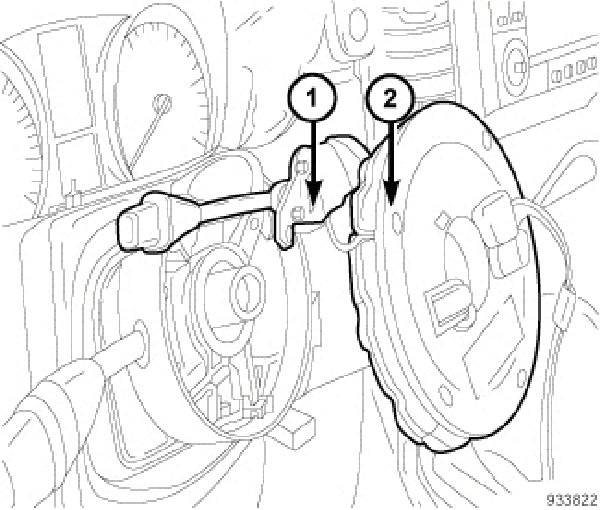

Speed Control Switch Removal







1. Remove and isolate negative battery cable from battery.

2. Remove the clockspring, Service and Repair

3. Remove speed control switch mounting screw.

4. Disconnect the speed control switch from multi-function switch.

5. Remove the speed control switch.
