Right

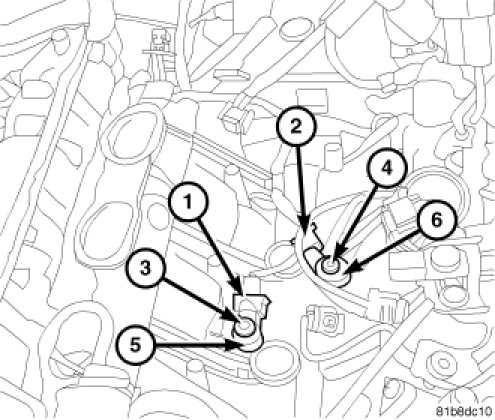

KNOCK SENSOR - 3.5L - RIGHT

1. Disconnect the negative battery cable.
2. Remove the upper intake manifold, Intake Manifold - Removal




3. Disconnect the Right Knock Sensor harness connector (1).
4. Disconnect the Right Knock Sensor bolt (3).




5. Remove the Right Knock sensor (5).
