Removal

REMOVAL

1. Disconnect the battery negative cable.
2. Remove the engine cover.
3. Remove the air filter housing.

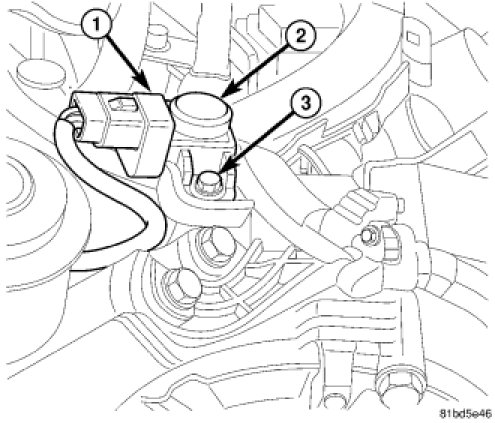

4. Disconnect the MAP sensor harness connector (1).
5. Remove the bolts (3) from the MAP sensor.
6. Remove the MAP sensor (2).
