P1188-Inlet Air Pressure Sensor Circuit Performance/Rationality: Notes

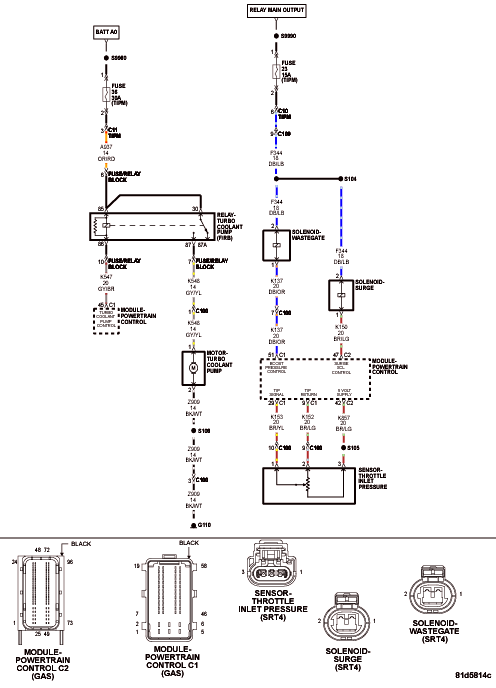

Fig 1: Turbocharger Surge Valve Control Circuit
GC0103555Courtesy of CHRYSLER LLC
