Intake Manifold

INTAKE MANIFOLD

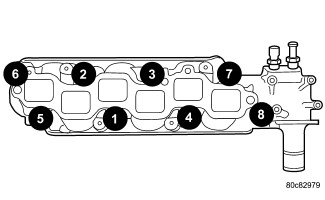

Intake Manifold - Lower 28 Nm (250 in.lbs.)

Intake Manifold - Upper 12 Nm (105 in.lbs.)
(Tighten bolts gradually starting in the center working outward)

THROTTLE BODY

CAUTION:The throttle body must be torqued in a mandatory torque sequence. Tighten in a criss - cross pattern to specification.

Tighten the three bolts and one stud in a mandatory torque criss - cross pattern sequence to 5.5 Nm (50 in. lbs.).
