Infrared Temperature Sensor - Installation

INSTALLATION

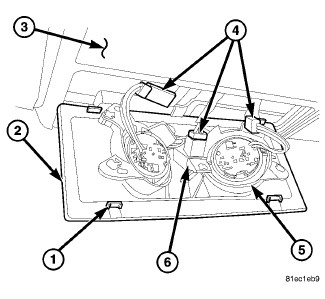

1. Position the infrared sensor and overhead map/courtesy lamp bezel (2) to the overhead console (3).
2. Connect the wire harness connectors (4) to the two overhead map/courtesy lamps (5) and the infrared sensor (6).
3. Engage the four retaining tabs (1) that secure the infrared sensor and overhead map/courtesy lamp bezel to the overhead console. Make sure the retaining tabs are fully engaged.
4. Reconnect the negative battery cable.
