Engine - Specifications






4.0L ENGINE






CYLINDER BLOCK






PISTONS






PISTON PINS






PISTON RINGS






PISTON RING SIDE CLEARANCE






PISTON RING WIDTH






CONNECTING RODS






CRANKSHAFT MAIN BEARING JOURNALS






CONNECTING ROD JOURNALS






CAMSHAFT






VALVE TIMING-INTAKE VALVE






VALVE TIMING-EXHAUST VALVE






CYLINDER HEAD

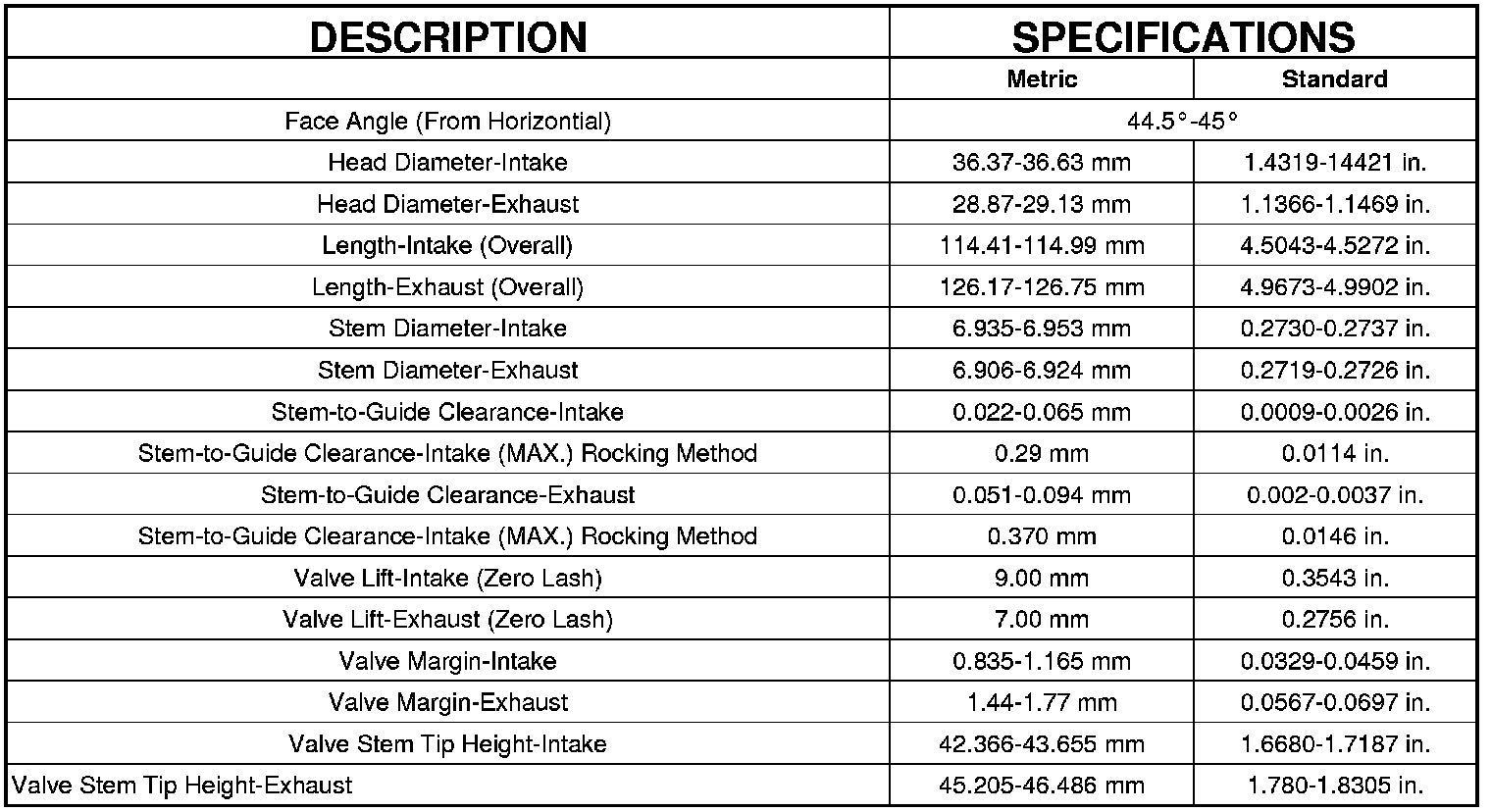

VALVES

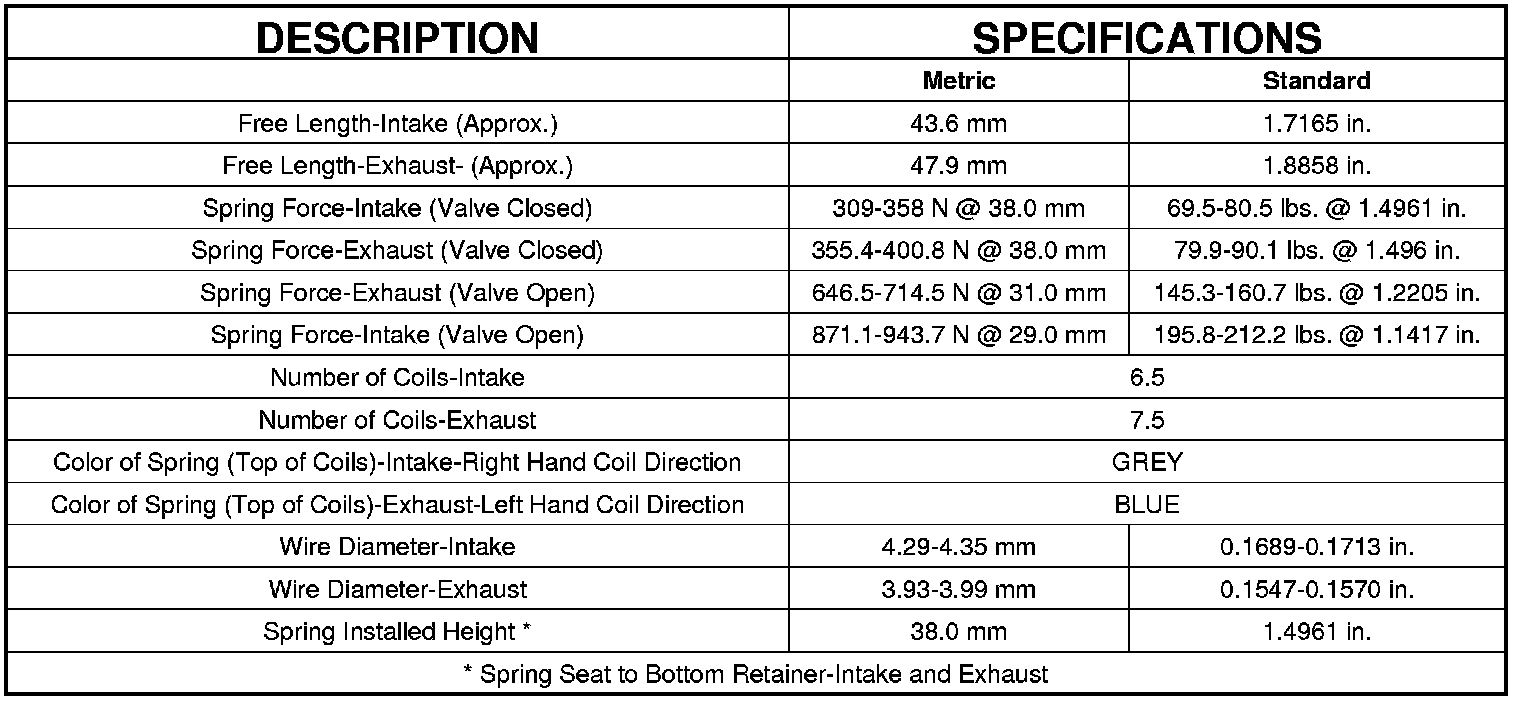

VALVE SPRINGS






OIL PUMP






OIL PRESSURE
