CYLINDER, Ignition Lock: Installation: Installation

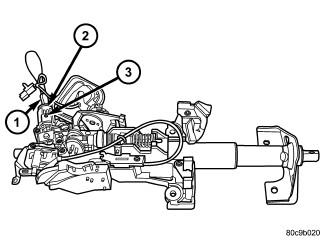

Fig 1: KEY CYLINDER

Courtesy of CHRYSLER LLC

1 - KEY

2 - KEY CYLINDER

3 - RETAINING PIN HOLE

The ignition key (1) must be in the key cylinder (2) for cylinder installation.

Install the key cylinder into the housing using care to align the end of the key cylinder (2) with the ignition switch.
Push the key cylinder (2) in until it clicks.
Replace the upper and lower shrouds.
Reconnect the battery.
