9093-Right Side Impact Sensor 1 Circuit Open: Notes

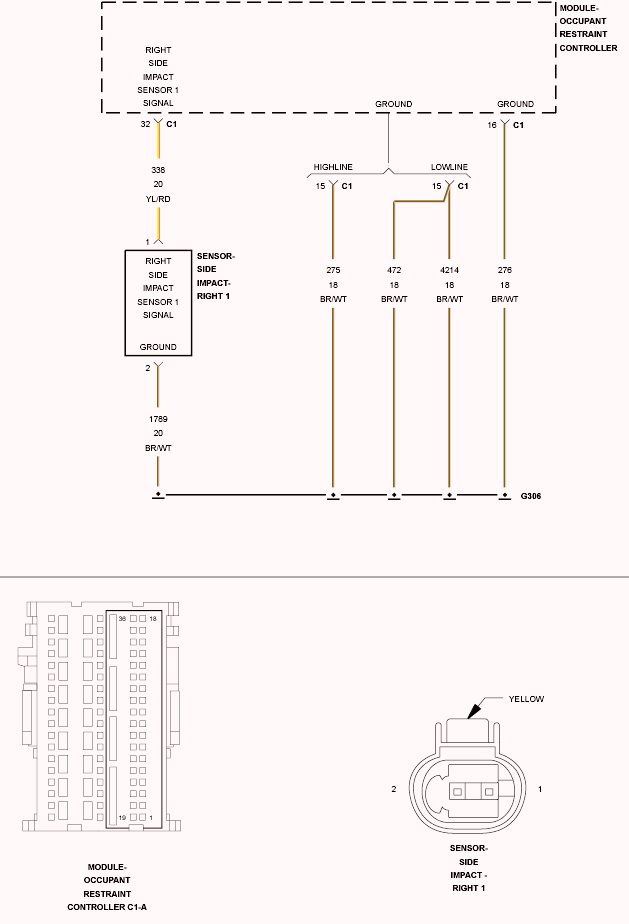

GC0134583Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
