2080 Differential Pressure Sensor Dynamic Offset: Notes

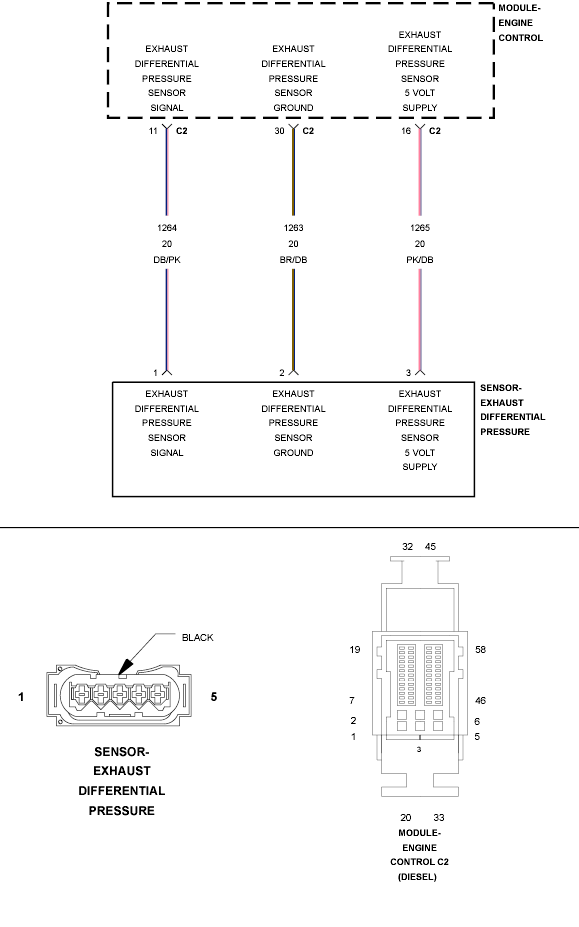

GC0134824Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
