MODULE, Occupant Restraint Controller: Installation: Installation

Courtesy of CHRYSLER LLC

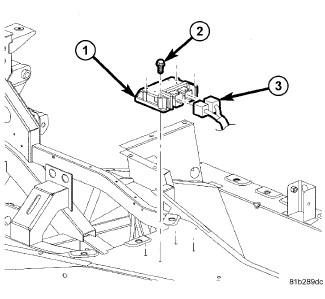

1. Place the ORC (1) into center stack area and place in mounting location.
   WARNING: Make sure ORC (1) is positioned properly on the floor tunnel with the arrow pointing forward. Failure to do so could result in personal injury or death.
2. Install the three retaining screws to the ORC. Tighten bolts to 13.5 N.m (120 in. lbs.).
3. Connect the two electrical connectors (3) to the ORC (1).
4. Install the cluster bezel. Refer to Body/Instrument Panel/BEZEL, Instrument Cluster - Installation .
5. Install the center bezel. Refer to Body/Instrument Panel/BEZEL, Instrument Panel - Installation .
6. Install the center console. Refer to Body/Interior/CONSOLE, Center - Installation .
   WARNING: Do not connect the battery negative cable. See Restraints - Diagnosis and Testing . Serious or fatal injury may result if the system test is not performed first.
7. Place battery access cover into place and install four bolts.
8. Close deck lid.
