System Specifications






SPECIFICATIONS

GEAR RATIOS






SPECIFICATIONS

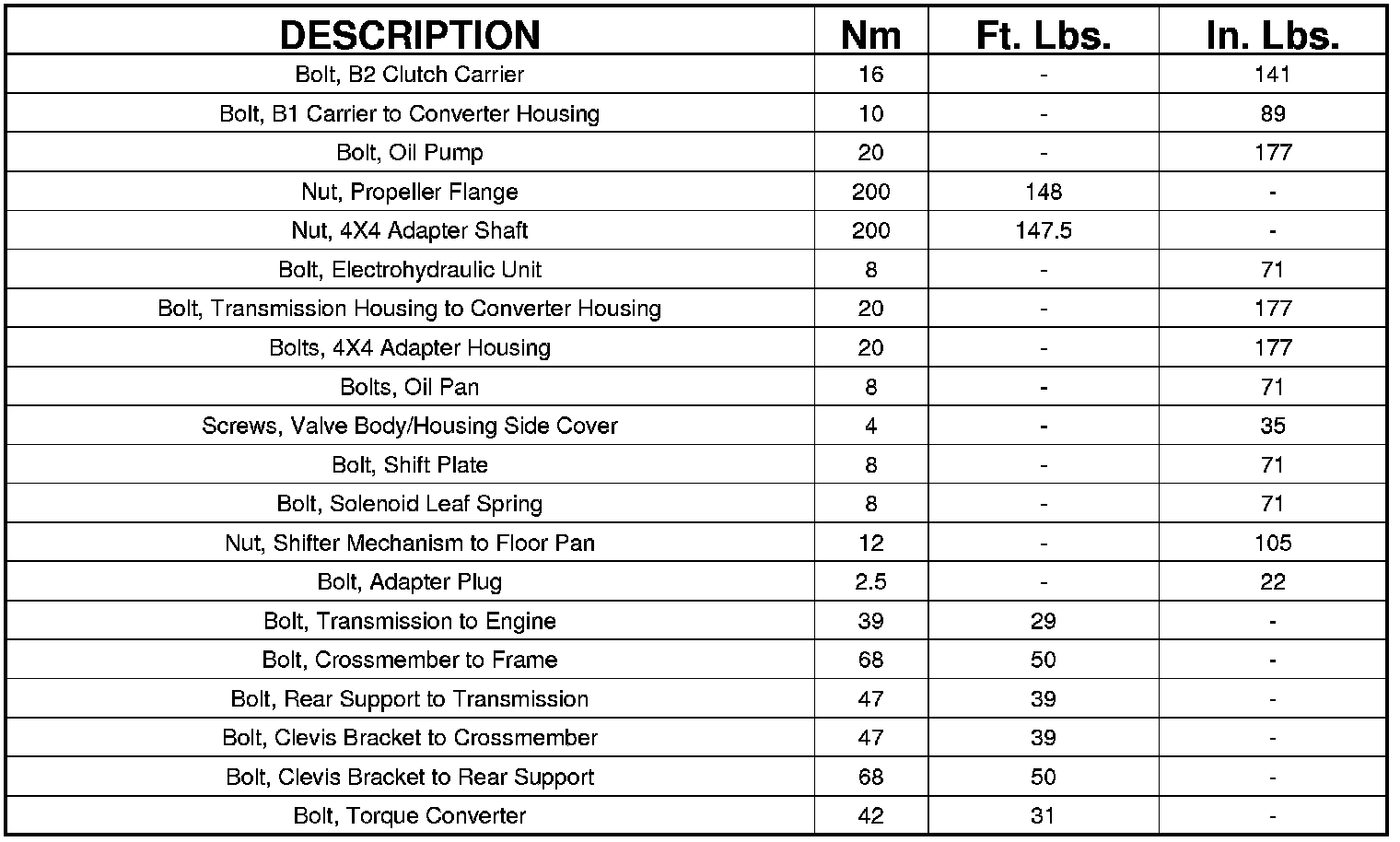

TORQUE SPECIFICATIONS

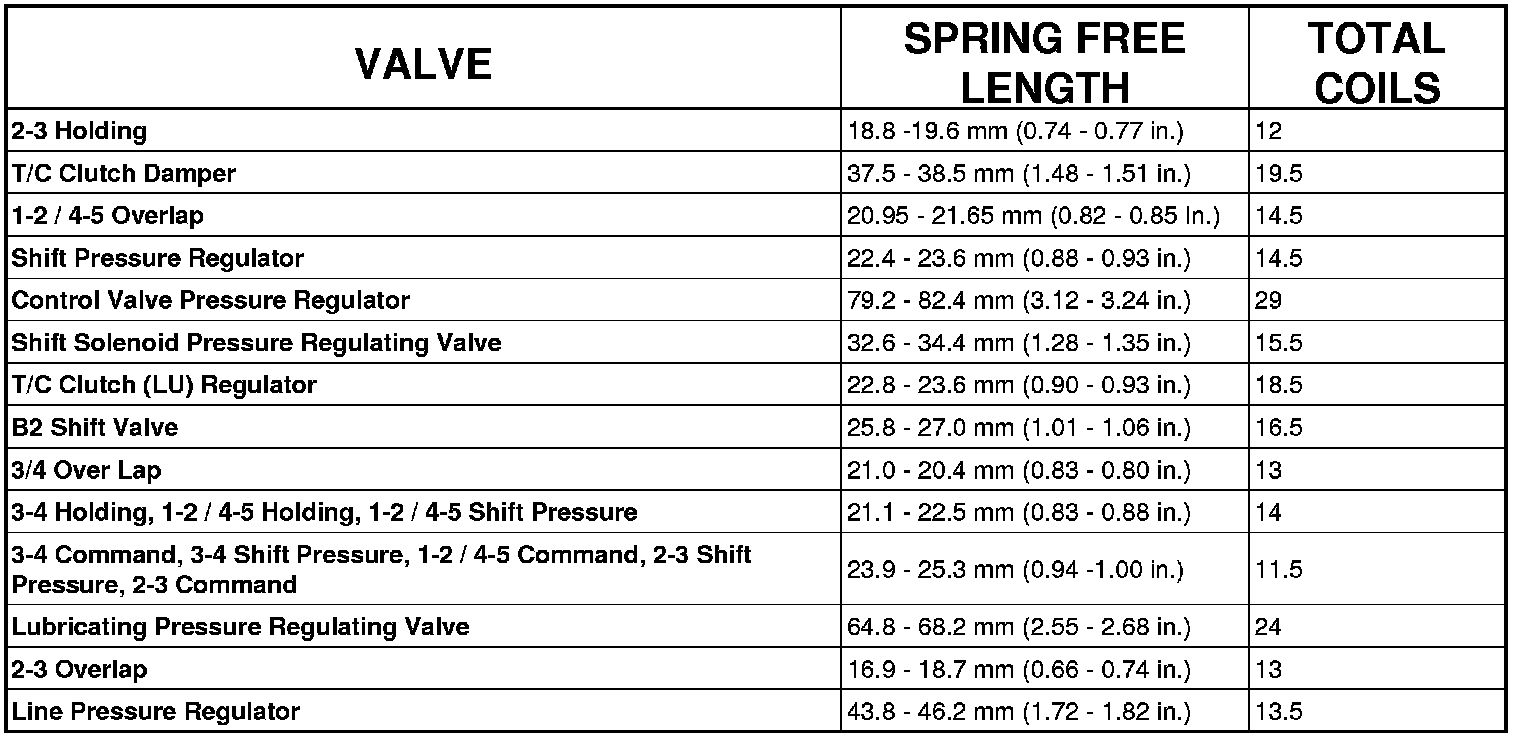

NAG1 VALVE BODY SPRING DIMENSION
