Module, Hands Free: Removal: Removal

WARNING: This page is about a different car, the 2012 Dodge Avenger and 2012 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable.
  2. Remove the HVAC control panel. Refer to CONTROL, A/C AND HEATER, REMOVAL .

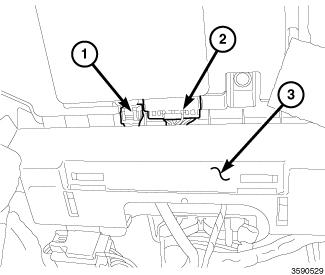

    Fig 1: Trim Piece & Connectors
    GC0147227Courtesy of CHRYSLER GROUP, LLC
  3. Remove the trim piece (3) in front of the Hands Free Module (HFM) to access the connectors (1, 2).

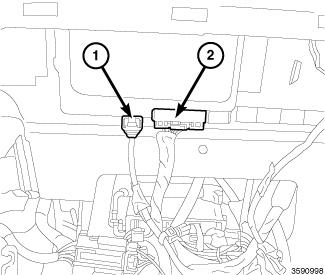

    Fig 2: Connector & USB Connector
    GC0147228Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the electrical connector (2) from the HFM and the USB connector (1) if equipped.
  5. Remove the hands free module mounting fasteners.
  6. Remove the HFM from the vehicle.
