Left Side Knock Sensor

Remove the mixing chamber. Refer to MANIFOLD, INTAKE, REMOVAL .

Fig 1: Accessory Drive Belt Tensioner & Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove the serpentine belt.
Install the accessory drive belt tensioner.
- Tighten bolts (1) to 20 N.m (177 in. lbs.).
- Tighten bolt (3) to 45 N.m (33 ft. lbs.).

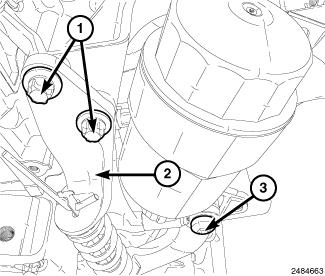

Fig 2: Intake Manifold Support Bracket & Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove bolts (1) and the intake manifold support bracket (2).

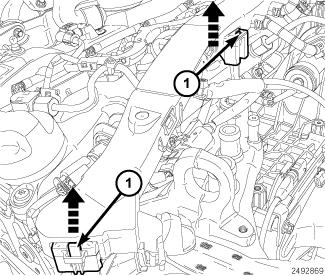

Fig 3: Locating Lock Tabs And Lifting Up On Wire Harness
Courtesy of CHRYSLER GROUP, LLC
Release the lock tabs (1) and lift up on the wire harness.

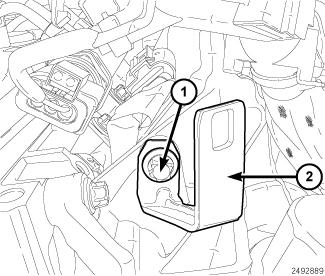

Fig 4: Wire Harness Support Bracket & Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove bolt (1) and wire harness support bracket (2).

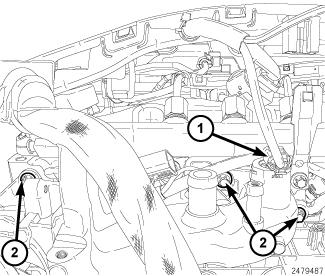

Fig 5: Identifying Coolant Temp Sensor & Cooling Manifold Bolts
Courtesy of CHRYSLER GROUP, LLC
Disconnect the coolant temp sensor (1) harness connector.
Remove the three cooling manifold bolts (2).

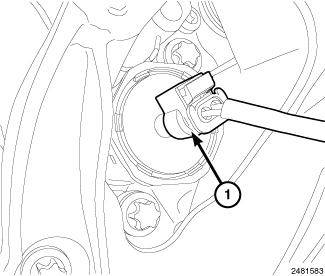

Fig 6: Piston Cooling Oil Control Valve Harness Connector
Courtesy of CHRYSLER GROUP, LLC
Disconnect the oil jet control valve (1) harness connector.

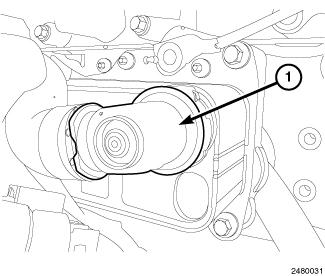

Fig 7: Water Pump Valve
Courtesy of CHRYSLER GROUP, LLC
Disconnect the coolant pump actuator vacuum line (1).

Fig 8: Identifying Thermostat Heater Connector & Upper Thermostat Housing Bolt
Courtesy of CHRYSLER GROUP, LLC
Disconnect the coolant temperature sensor (1) harness connector.
Remove the two bolt (2) from thermostat housing.

Fig 9: Identifying Bolts From Cooling Manifold
Courtesy of CHRYSLER GROUP, LLC
Remove the bolts (1) from the cooling manifold.

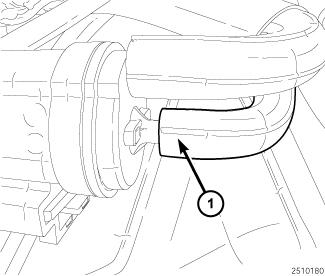

Fig 10: Identifying Coolant Hose
Courtesy of CHRYSLER GROUP, LLC
Disconnect the coolant hose (1) to the oil cooler and remove cooling manifold.

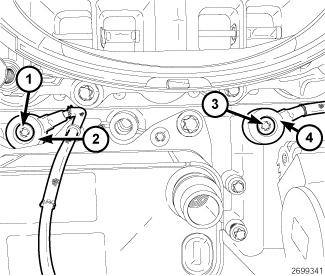

Fig 11: Identifying Right Knock Sensor & Bolt
Courtesy of CHRYSLER GROUP, LLC
Remove bolt (1) and the left knock sensor (2).
