Wheel Alignment

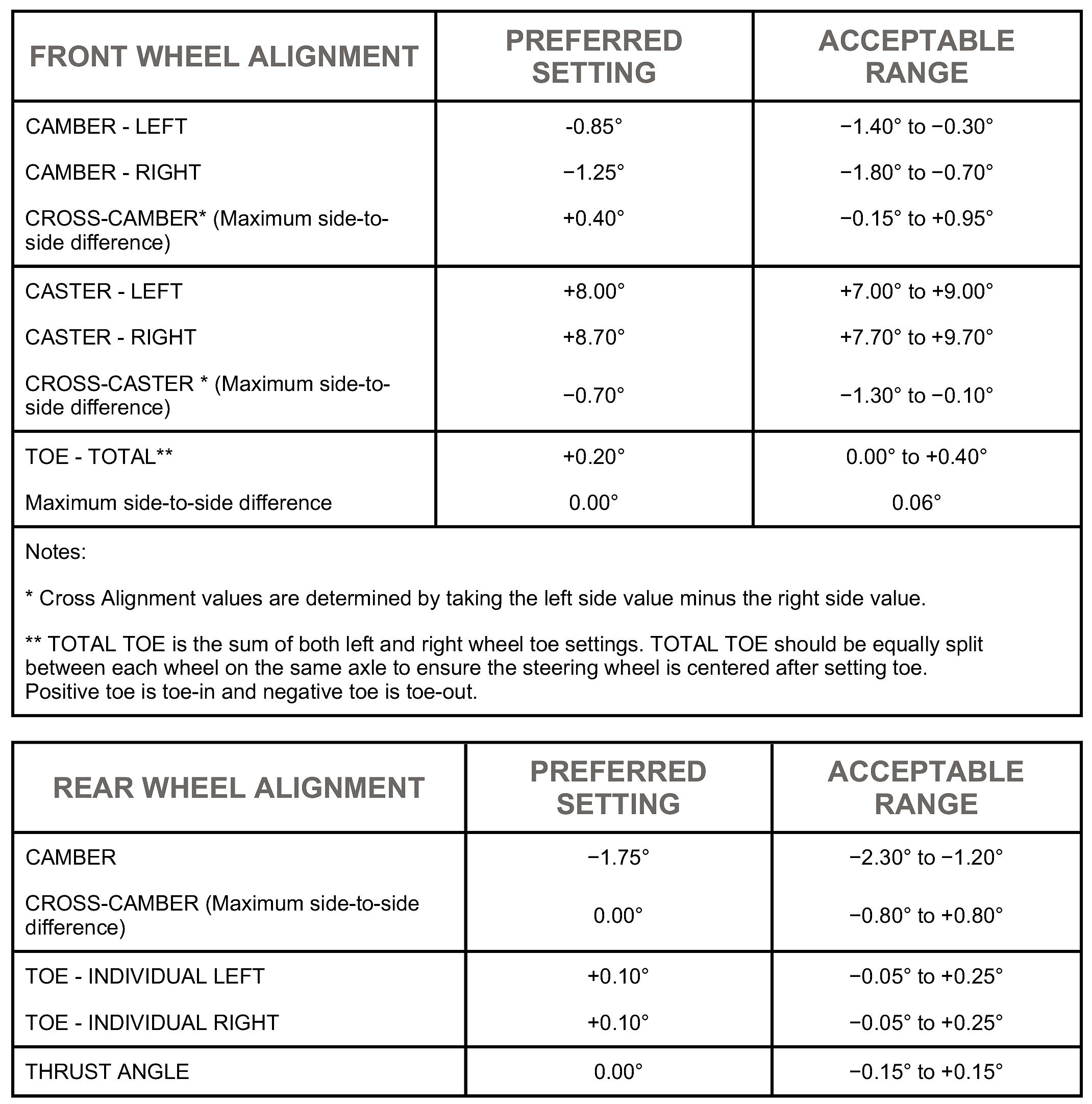

WHEEL ALIGNMENT

NOTE: All specifications are given in degrees.

NOTE: All wheel alignments are to be set at curb height.

REAR-WHEEL-DRIVE - NON SRT8:

REAR-WHEEL-DRIVE - NON SRT8

POLICE PACKAGE:

POLICE PACKAGE
